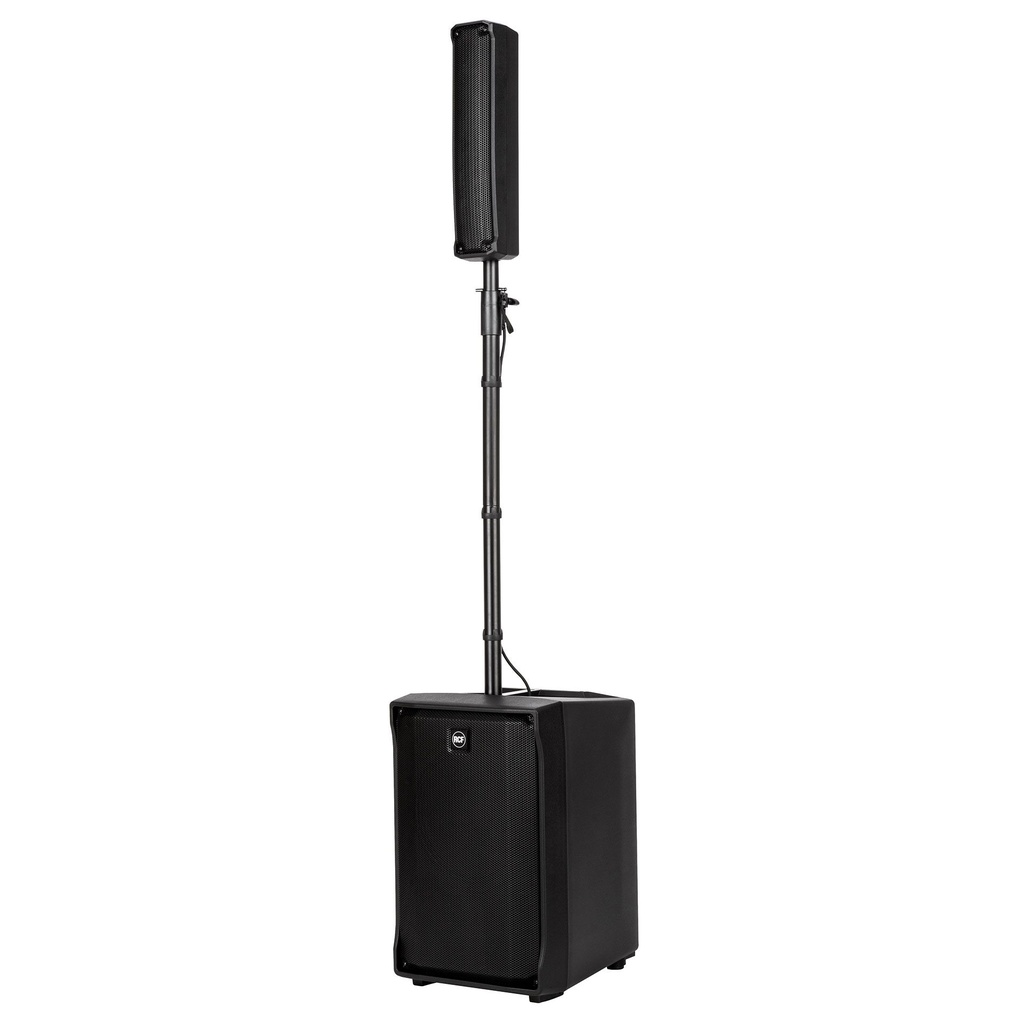

EVOX J8 Active Two Way Portable Array

128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12″ woofer, high power 2.5″ voice coil
8 x 2″ ultra compact fullrange 1.0″ voice coil
2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
23,8/52.5 kg/lbs

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.




BRING THE PARTY WITH YOU



POWERFUL CLASS D AMPLIFIER
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS
HIGH FREQUENCIES – The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.
LOW FREQUENCIES – The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
Read More

READY TO PLAY IN A FEW SIMPLE STEPS
PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.
MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.

J SYSTEM CONFIGURATIONS
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
Read More

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
Read More

SPECIFICATIONS

Acoustical specifications

FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

MAX SPL @ 1M:
128 dB

HORIZONTAL COVERAGE ANGLE:
120°

VERTICAL COVERAGE ANGLE:
30°

Transducers

FULLRANGE:
8 x 2.0”, 1.0” v.c

WOOFER:
12”, 2.5” v.c

Input/Output section

INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

Processor section

CROSSOVER FREQUENCIES:
220 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line

Power section

TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE

Standard compliance

CE MARKING:
Yes

Physical specifications

CABINET/CASE MATERIAL:
PP Composite

HANDLES:
1 Top

GRILLE:
Steel

COLOR:
Black

Size

HEIGHT:
2285 mm / 89.96 inches

WIDTH:
400 mm / 15.75 inches

DEPTH:
460 mm / 18.11 inches

WEIGHT:
20.2 kg / 44.53 lbs

Shipping informations

PACKAGE HEIGHT:
676 mm / 26.61 inches

PACKAGE WIDTH:
451 mm / 17.76 inches

PACKAGE DEPTH:
581 mm / 22.87 inches

PACKAGE WEIGHT:
29.9 kg / 65.92 lbs
