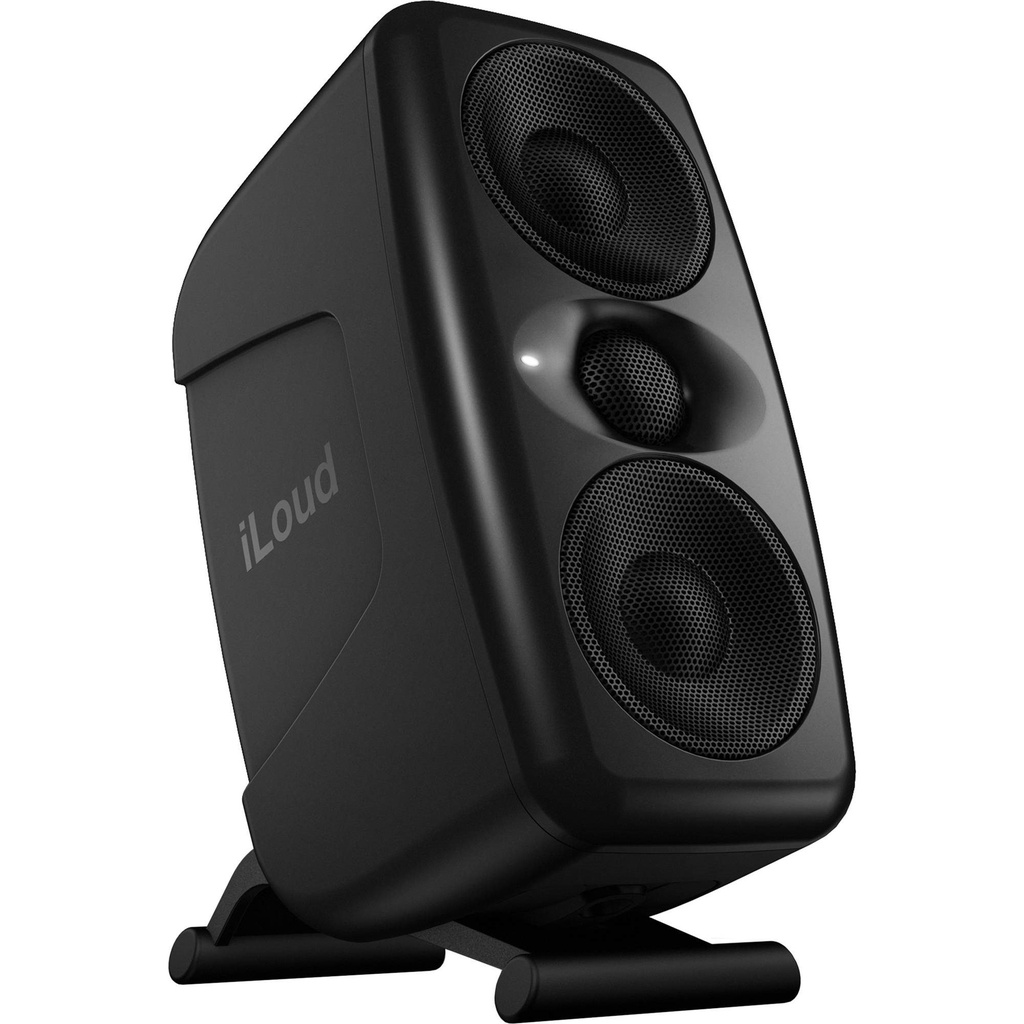

IK Multimedia iLoud MTM – High Resolution Compact Studio Monitor (Single)

The IK Multimedia iLoud MTM – High Resolution Compact Studio Monitor (Single) is a compact high-resolution studio monitor designed to deliver accurate, uncoloured sound for professional recording studios, project studios, and broadcast applications. IK Multimedia’s patent-pending Physical Response Linearization (PRL) system uses a precise model of the enclosure’s design, construction and materials, combined with electro-mechanical measurements of the real units, to correct the system’s performance in real-time, which results in a flat frequency response, accurate phase, and a firm, balanced bass output that competes with other monitors that are twice the size.
The MTM features a 100W Class-D bi-amplifier which drives 70W to the two 3.5″ high-performance woofers and 30W to the single, back-chambered silk-dome tweeter, which combine for a frequency response of 40 Hz to 24 kHz and a maximum SPL output of 103 dB. The iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, which automatically adjusts the built-in DSP for true phase-coherency and precise, defined point-source sound. The rear panel also offers options to further customise user settings including LF extension, LF boost/cut, and HF boost/cut.
The included tilt mount allows you to set an angle from 0° to 20°, which helps isolate the dispersion away from flat surfaces, such as desktops or mixing boards. A horizontal bass is also provided and includes a bottom thread to mount to mic stands for more installation options. The IK Multimedia iLoud MTM Monitor includes the ARC microphone, an ARC mic cable, a power cord, a tilt stand, a horizontal support, and a locking key.
Key Features:

Designed for accurate sound focus and controlled sound dispersion.
Two 3.5” high-performance polypropylene woofers.
Single 1” back-chamber loaded silk dome tweeter.
100W 2-way bi-amped speaker with Class-D amplifiers.
103 dB max SPL.
Flat 40 Hz to 24 kHz frequency response.
Coherent phase response within +/-15° from 200 Hz to 24 kHz.
XLR-1/4″ combo input, -10 dBv or +4 dBu selectable sensitivity.
AEQ controls: LF extension, LF boost/cut, HF boost/cut.
Automatic environment calibration with included ARC measurement microphone.
Compact dimensions for easy positioning even in the smallest place.
Multiple positioning with included 20° tilt range insulation base, horizontal base, and built-in mic stand thread.

Specifications

Studio Monitor

Monitor Type
Active 2-Way

Enclosure
Bass-Reflex, Shielded

Power Rating
100 W RMS

Drivers
LF Driver: 2 x 3.5″ / 88.9 mm Polypropylene Woofer HF Driver: 1 x 1″ / 25.4 mm Silk Dome Tweeter

Amplification
LF Amplifier: Class-D Rated at 70 W RMS HF Amplifier: Class-D Rated at 30 W RMS

Performance

Frequency Range
40 Hz to 24 kHz ± 3 dB

Frequency Response
40 Hz to 24 kHz ± 3 dB

Maximum Sound Pressure Level (SPL)
103 dB

Phase Adjustment
None

Crossover

Crossover Frequency
High-Pass Frequency: 3.1 kHz

Crossover Type
Active

Connectivity

I/O
1 x Combo XLR / 1/4″ Balanced Female Analogue Input 1 x 1/8″ / 3.5 mm TS Unbalanced Female Analogue Input

Computer Interface
1 x USB Type-B

Power

AC Input Power
90 to 240 VAC at 50/60 Hz

Power Consumption
120 W (Maximum)

General

Dimensions (W x H x D)
10.4 x 6.3 x 5.1″ / 264.2 x 160.0 x 129.5 mm (Active Speaker)

Weight
5.5 lb / 2.5 kg (Each)
