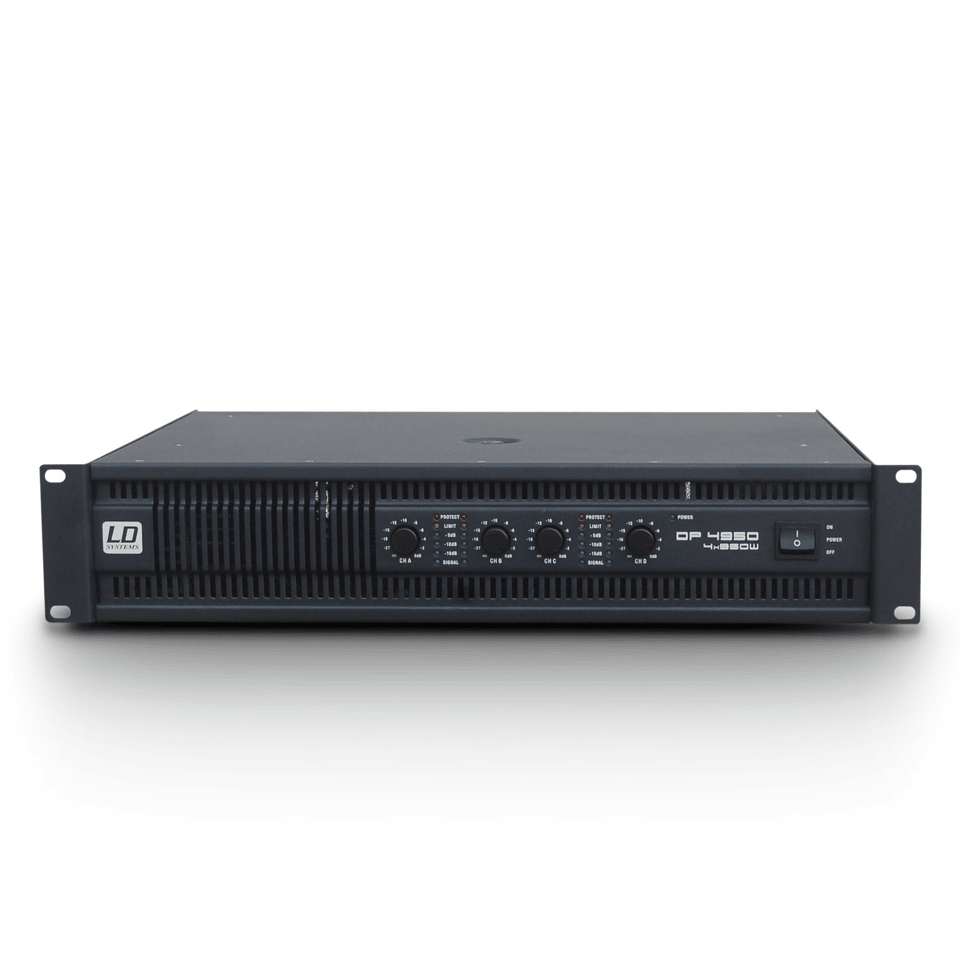

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.
The DEEP2 series features a Clip Limiter as well as every common protection circuit. On the rear panel you will find all the common In- and Outputs.
The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.
The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.
Specifications
Product number LDDP4950
Product type Power Amplifiers
Type PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms) 4 x 810W
Rated ouput power (1kHz @ 8 Ohms) 4 x 490W
Rated ouput power (1kHz @ 8 Ohms, bridged) 2 x 1600W
Output circuitry Class H
Frequency response 20 – 20000Hz
THD 400
Crosstalk >70dB
Gain 38dB
Input sensitivity 0.775V
Protection circuits thermal overload, DC protection, short circuit
Controls mains switch (on/off), ground lift, 4 x volume, bridge/stereo mode selector
Indicators Signal, Power, Limit, Protect (protection circuit engaged)
Loudspeaker outputs 4
Speaker output connections Speakon compatible
Cooling highly efficient, automatic
Operating voltage transformer, 230 V AC / 50-60 Hz
Weight 19.6kg
