The Listen Everywhere LW-100P-02 is an affordable and reliable way to meet ADA & IBC assistive listening requirements for audiences of up to 1000 users. Connect to your existing Wi-Fi network service and stream directly to users through the free mobile app. Cloud-based management allows for simple management of the system, including updates and customization options. Additionally, in-app functions let you create custom welcome messages, videos, banners, and more, all providing another point of contact with your clients and customers.
Architectural Specs
The audio over Wi-Fi servers shall be capable of broadcasting multiple audio sources over Ethernet to a WLAN access point. Smart phones and tablets shall be able to receive the audio broadcast through a proprietary app. The app shall be made available for download to smart devices through the Apple and Android app stores or other web locations at no charge.
Audio over Wi-Fi servers shall be available in two models; one with two audio inputs and the other with 4 to 16 audio inputs. Each server shall be rack mountable in 1 RU 19” rack space and capable of receiving line level audio inputs. There shall be audio input indication through LED’s shown on the front panel of the server. There shall be no user control interface on the server to prevent tampering and facilitate easy setup and operation.
Each server shall have an external power supply for use in multiple countries with the appropriate line cord and have compliance for the countries specified.
The proprietary app shall have the ability to play venue intro videos or video ads. It shall be capable of showing sliding ad banners, URL hyperlinks, and PDF documents, which are customer supplied and supported. It shall be capable of timing ads based upon the time of day and day of the week. The user venue shall be able to customize the app with their own colors, logos and channel names. Channel selections shall allow customization with channel logos, images and colors.
All app features shall be managed through a web application cloud service as well as have the capability to push updates to each server remotely. Each server shall be accessible through a LAN manager web application to locally manage server network configurations.

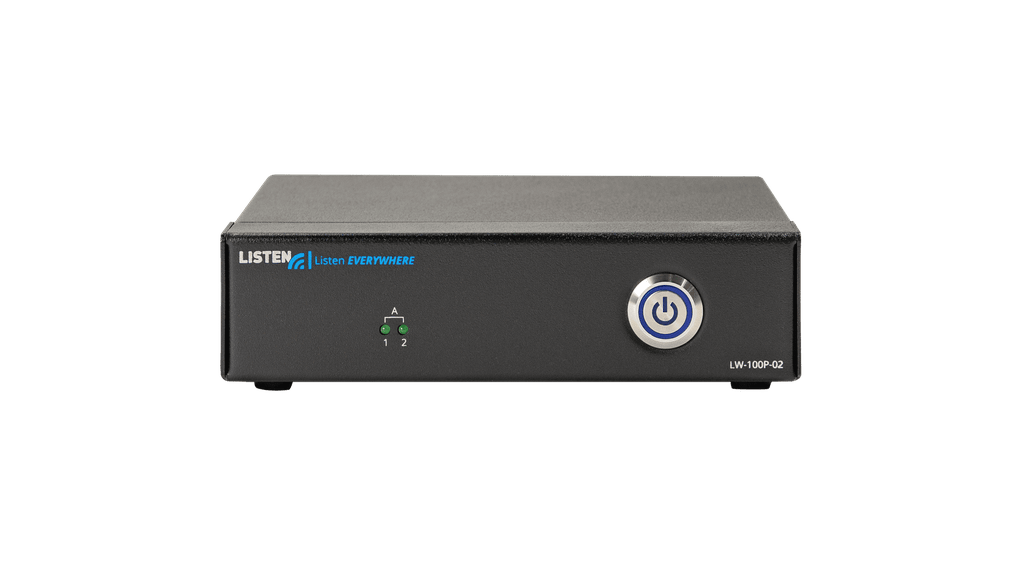

Servers with 2 analog audio inputs shall be Listen Technologies Listen Everywhere LW-100P-02
Servers with 4 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-04
Servers with 8 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-08
Servers with 12 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-12
Servers with 16 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-16
