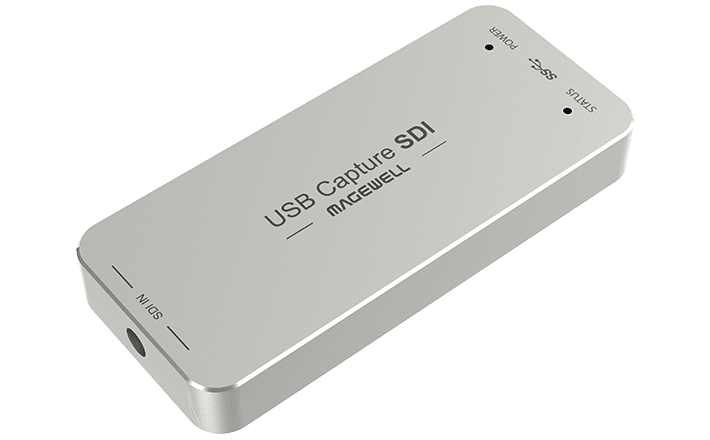

Specifications and Features
Interface
Input Interface
- One SD/HD/3G SDI input + embedded audio
- Support input resolution up to 2048×1080 pixels
Host Interface
- USB 3.0, compatible with USB 2.0
OS
- Windows, Linux, Mac, Chrome OS
Capture format
- Support capture resolutions up to 2048×1080
- Support capture frame rates up to 120fps
- Support 2-channel audio streams
- Capture SDI signals transmitted a long distance away: up to 150m for 3G-SDI signals
Included Software
- USB Capture Utility, Capture Express, etc.
Compatible Software
- Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.
Input Features
- Max input: 2048×1080 60fps 4:2:2 10bit
- Up to 8-channel embedded audio
- SD/HD/3G-SDI BNC input
- SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard
- Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
- Input SDI signals transmitted up to 150m for 3G-SDI signals
Process and Capture Features
- Video processing pipeline up to 160M pixels/s. Capture videos up to 2048×1080, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
- Support for YUY2/UYVY/RGB24/RGB32
- Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
- Up to 2 audio channels at 48KHz
Included Software
- USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
SDK & APIs
- The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
- Windows DirectShow/Wave API/DirectSound/WASAPI
- Linux V4L2/ALSA
- macOS AVCaptureSession/AudioUnit
Output Interface
- USB 3.0
- compatible with USB 2.0
- compatible with USB 3.1 Gen 1
Compatible Software
- Zoom Rooms
- Microsoft Teams
- Skype for Business
- Google Hangouts
- GoToMeeting
- Gstreamer
- VLC
- OBS Studio
- XSplit
- QuickTime Player
- Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
Recommended OS
- Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
- Linux x86, x64 & ARM architecture, with 2.6.35 and above
- Mac OS X 10.9/macOS 10.12 and above
- Chrome OS
LED Indicator
- Status LEDs indicate the working state of each channel:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory failed or FPGA configuration failed
- Off: firmware or power supply abnormal
Form Factor
- 92.2mm (L) x 40.2mm (W) x 12.3mm (H)
Accessories
- 1 × USB 3.0 cable
- 1 × MCX to BNC cable
Power Consumption
- 5V max current: ~0.5A
- Max power consumption: ~2.5W
Working Environment
- Operating temperature: 0 to 50 deg C
- Storage temperature: -20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
