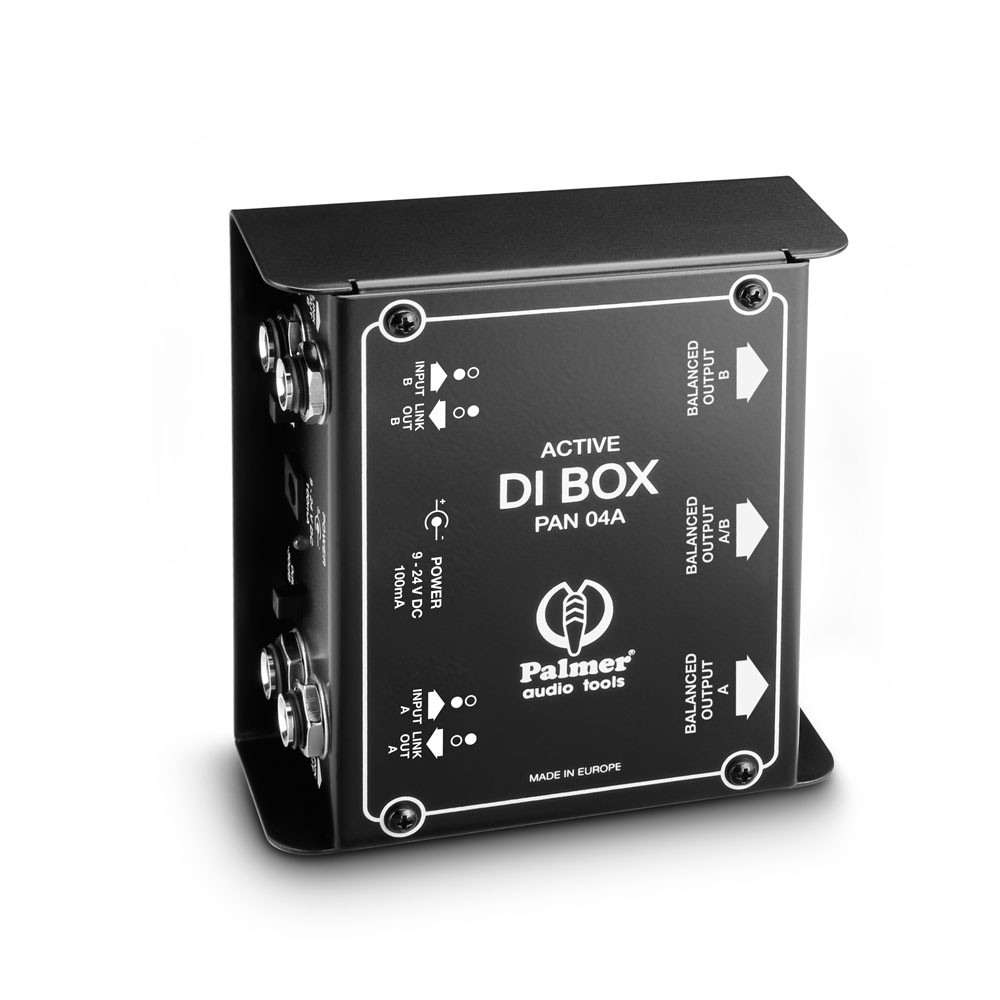

The Palmer PAN04A is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.
- Active 2-channel DI box with premium balancing transformers
- 10–40 kHz frequency response, high dynamic response

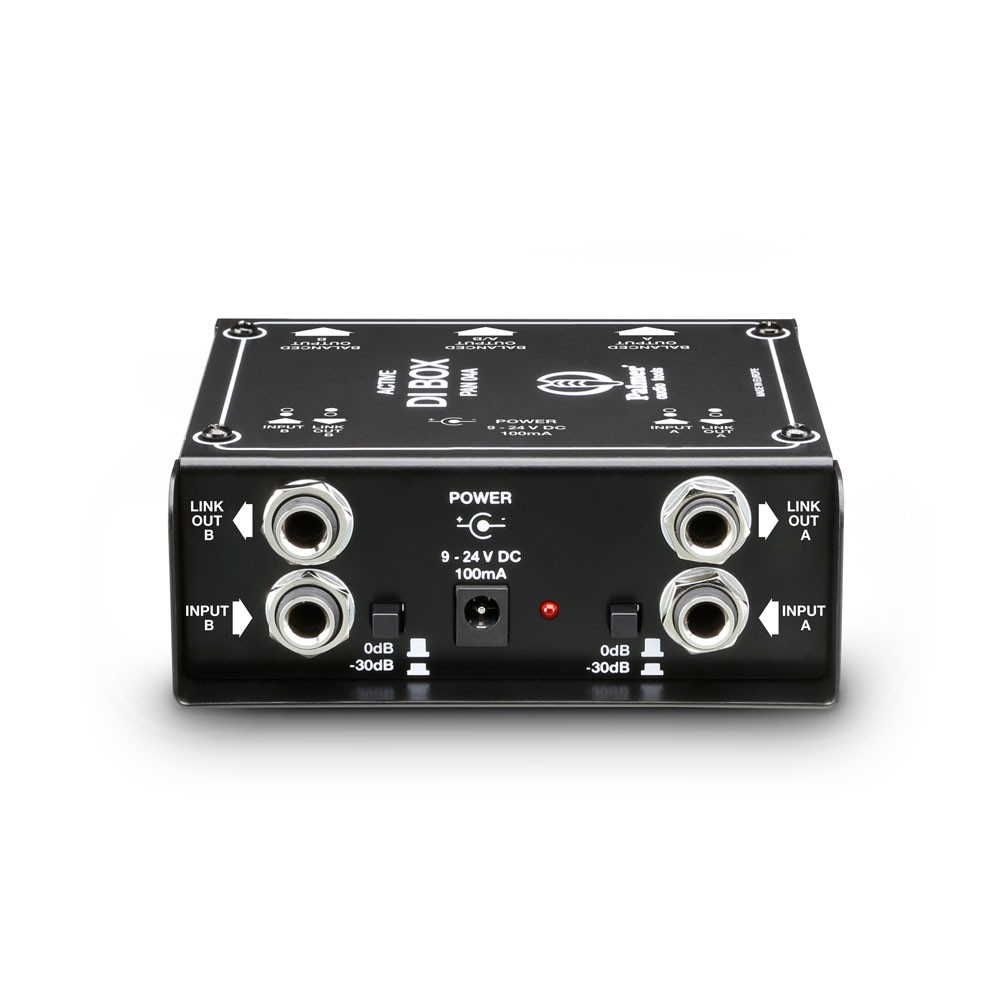

- -30 dB input attenuation, switchable
- Ground lift switch for each output
- Balanced mono summed output
- Can be powered with 9 to 24 V DC mains adapters or phantom power
Product type: DI Boxes
Type: active
Channels: 2
Inputs: 2
Input connectors: 6.3 mm jack
Max. input level: + 45 dBu
Input impedance: 1M Ohm(s)
Outputs: 3
THRU outputs/channel: 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 11 dBu
Output impedance 200 Ohm(s)
Frequency response 10 – 40000 Hz
Transformer balanced Yes
Ratio 1 : 1
Controls attenuation , ground lift
Cabinet material sheet steel
Cabinet surface Powder coated
Width 116 mm
Depth 110 mm
Height 45 mm
Weight 0,47 kg
