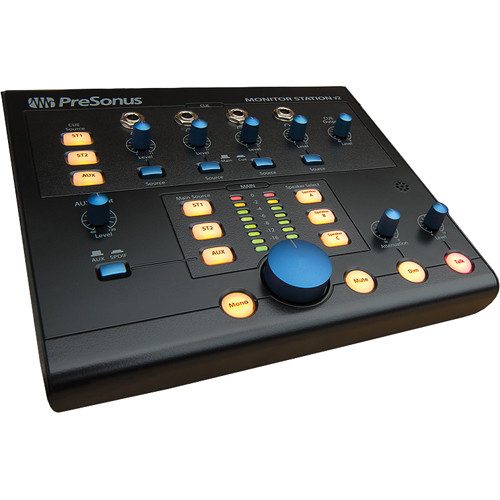

The Monitor Station V2 from PreSonus is a desktop studio control centre that allows you to switch between three sets of studio monitors and three input sources. It also features a built-in headphone amplifier with four 1/4″ headphone outputs, each with dedicated level control. These features make the Monitor Station V2 suitable for a variety of recording, monitoring and mixing applications.
For communicating with the talent, the Monitor Station V2 is equipped with a built-in electret-condenser talkback microphone with input-gain control and talkback button. It has a large main level control knob, dedicated buttons for input and speaker selection, and 8-segment colour LED input metres for visual monitoring.
Features
Inputs and Outputs
- 2x stereo pairs of 1/4″ TRS inputs
- 1x stereo pair of RCA Aux inputs
- 1x stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3x stereo pairs of 1/4″ TRS speaker outputs with level controls
- 1x stereo pair of 1/4″ TRS main outputs
- 1x stereo pair of 1/4″ TRS cue outputs
- 4x 1/4″ TRS stereo headphone outputs
Controls
- Large main level control
- 3x individual main source (ST1, ST2, Aux) select switches
- 3x individual speaker select switches
- Cue section with source select (ST1, ST2, Aux) and output-level control
- Aux-S/PDIF select switch
- Aux input level control
- Main mute, Mono, and Dim switches with variable Dim attenuation
Additional Features
- 8-segment colour LED input metres with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and talkback button
- Convenient desktop design
Specifications
| Inputs | |
| Microphone | Gain Range: +15 to +55 dB
Type: Electret condenser Sensitivity: -42 dB |
| Stereo Input | Type: 1/4” TRS Active Balanced
Input Impedance: 10 kΩ (balanced) S/N Ratio: (1 kHz @ +10 dBu, unity gain)>105 dB THD+N: (unwtd, 1 kHz @ 0 dBu output, unity gain)<0.0075% Frequency Response: (±0.5 dB)10 Hz to 65 kHz Noise Floor: (20 Hz to 20 kHz, 150Ω input termination)-96 dBu Maximum Input Level: (minimum gain, 1 kHz @ 0.5% THD+N)+22 dBu |
| AUX Inputs | Type:RCA active unbalanced
Input Impedance:47.5 kΩ S/N Ratio: (1 kHz @ 0 dBu, Unity Gain)>115 dB THD+N: (unwtd, 1 kHz @ 0 dBu Output, Unity Gain)<0.01% Frequency Response: (±0.5 dB)10 Hz to 50 kHz Gain Range: 80 dB to +10 dB |
| S/PDIF | Type:RCA 75Ω coax
Dynamic Range:113 dB THD+N:0.0025% (1 kHz @ -1 dBFS) Maximum Output: at 0 dBFS+18 dBu Sample Rates:44.1, 48, 88.2, 96 kHz |
| Input Metres | Type: Dual 8-segment LED w/peak hold
Sensitivity Range: -24 dB to 0 dB |
| Outputs | |
| Analogue Outputs | Type:1/4″ TRS active balanced
Output Impedance: 51Ω (balanced) THD+N: (unwtd, 1 kHz @ 0 dBu, unity gain) <0.01% Frequency Response: (±0.5 dB) 10 Hz to 50 kHz |
| Speaker Out | Trim Range:-80 dB to 0 dB
Main Level Range:-80 dB to 0 dB Dim Attenuation Range:-30 dB to -6dB |
| Cue | Cue Level Range: -80 dB to 0 dB
Dim Attenuation: (talkback activated) -20 dB |
| Headphone Outputs | Type: 1/4” TRS active stereo
Maximum Output: (60Ω load) 150 mW / channel Frequency Response: (±1.0 dB) 10 Hz to 50 kHz |
| Power | Power Supply Type:External DC transformer/internal line
Input Connector Type:Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter Monitor Station Input Voltage Range:18 VDC Power Requirements: (continuous)10W |
| Physical | 63.5 x 216.0 x 228.6 mm |
| Weight | 4.54 kg |
