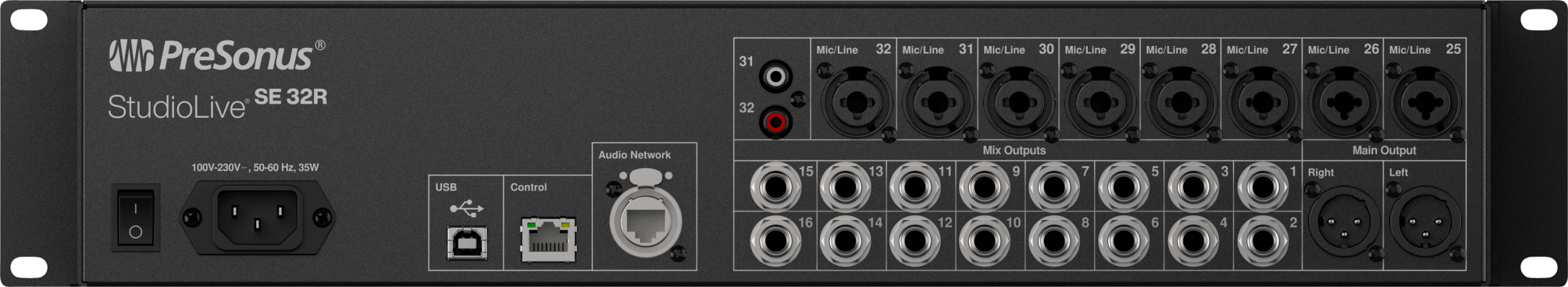

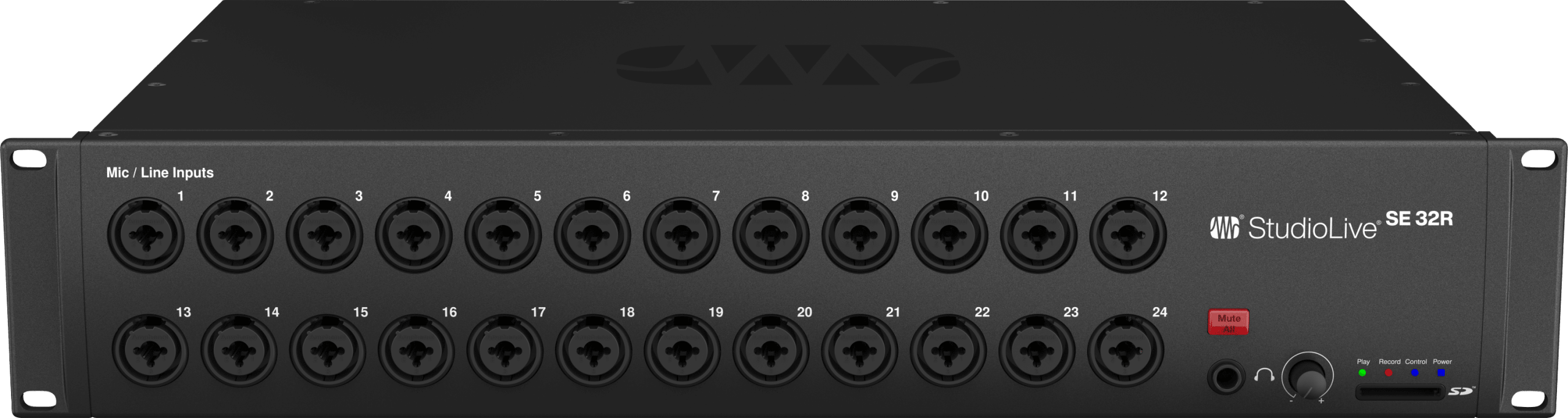

The PreSonus StudioLive SE 32R packs 32 XMAX-R recallable preamps and a full 40-channel mixing system into a compact 2U rack chassis. Designed for demanding live, broadcast and install applications, it offers Milan-certified AVB networking for seamless integration with NSB stage boxes, EarMix 16M personal monitor mixers and other StudioLive Series III SE consoles.
The dual-core FLEX DSP Engine drives nine State-Space modeled EQs and ten vintage-inspired compressor models on every input and bus. Continuous 64×64 USB audio, onboard SD stereo recording and Virtual Soundcheck via Capture round out a thoroughly modern mixing toolset.
Specifications
- Inputs: 32 XMAX-R recallable mic/line preamps
- Mix architecture: 40 channels, 16 FlexMixes, 4 subgroups, 4 FX mixes, 24 DCAs
- USB interface: 64×64 bidirectional, 24-bit / 48 kHz
- Networking: Milan-certified AVB with locking XLR
- Recording: Onboard stereo SD card recording
- Processing: 32-bit floating point internal DSP
- Dynamic range: 115 dB
- Latency: 1.9 ms total system
- Dimensions: 19″ x 3.5″ x 12″ (2U)
- Weight: ~11.2 lbs (5.1 kg)
- Power: 35 W continuous, 100-230 VAC
