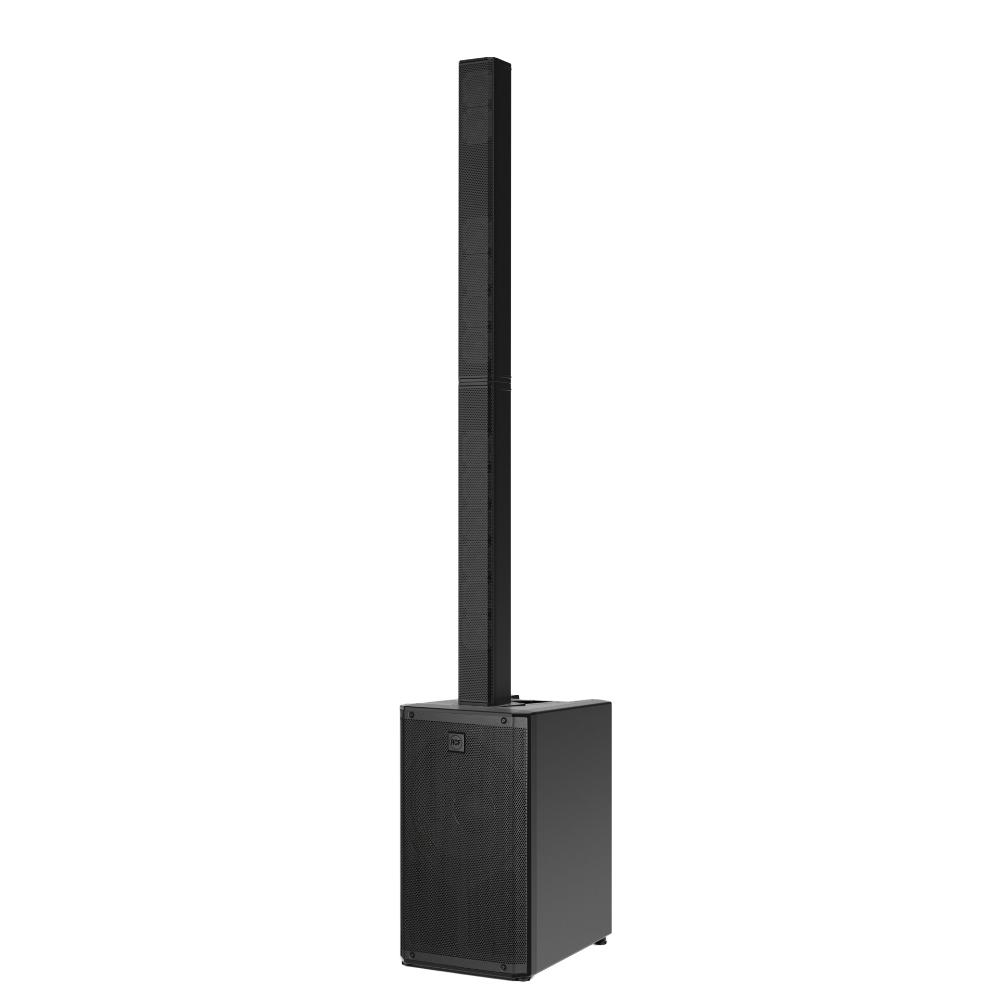

RCF EVOX J11 3500W Three-Way Active Portable Column PA System

Serious Power. Premium Clarity. Compact Column Design.

The RCF EVOX J11 is the most powerful model in the EVOX J portable column series, delivering an impressive 132 dB Max SPL from a massive 3500W Class-D amplifier. Designed for professional DJs, live bands, corporate production, and high-energy events, the J11 combines wide coverage, fast transient response, and deep, controlled low end in a sleek, road-ready format.

Despite its compact footprint, the EVOX J11 delivers performance that rivals larger PA systems — with fast setup and elegant design that fits seamlessly into any venue.

---

⭐ Key Features

✔ 132 dB Max SPL
✔ 3500W Peak Class-D Amplifier
✔ True 3-Way Design
✔ 1.75” Neo Compression Driver
✔ 12 × 3” Neodymium Full-Range Drivers
✔ 12” High-Power Bass-Reflex Woofer
✔ 120° × 40° True Resistive Waveguide
✔ FiRPHASE & Bass Motion Control® DSP
✔ PowerCON TRUE1 TOP IN/OUT
✔ Padded Column Carry Bag Included

---

🔊 True 3-Way Professional Sound

The EVOX J11 features an advanced acoustic configuration engineered for clarity, impact, and consistent coverage:

• 1.75” Neodymium compression driver with Kapton dome

• True Resistive Waveguide (TRW) for smooth, constant 120° × 40° dispersion

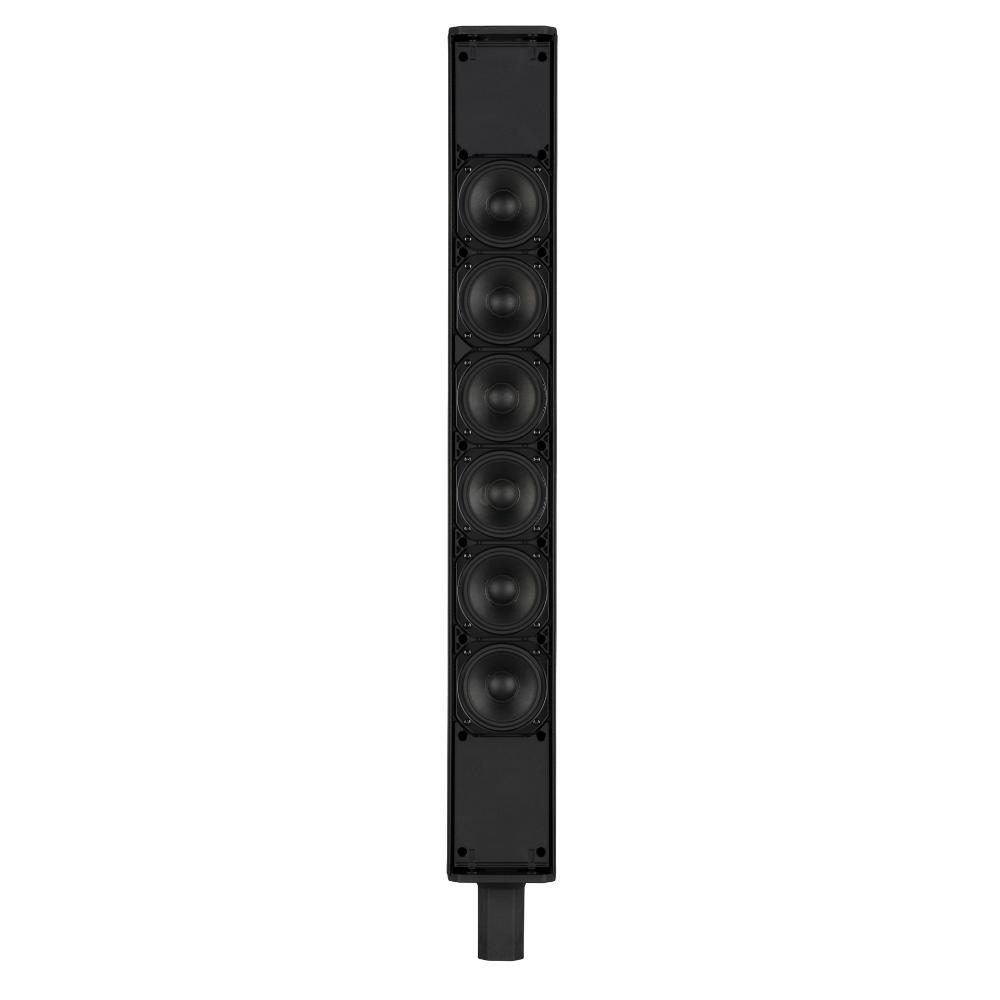

• 12 × 3” full-range neodymium drivers for articulate mids and strong projection

• 12” high-power woofer in bass-reflex enclosure for deep, tight low frequencies

The extended driver array increases output and headroom, making the J11 ideal for larger audiences and higher SPL environments.

---

⚡ 3500W Class-D Amplifier – Up to 2.5x More Power

The new-generation dual-channel Class-D amplifier delivers:

• 3500W Peak Output

• 1500W HF / 2000W LF

• 132 dB Max SPL

• Ultra-fast transient response

• Fanless convection cooling

• Advanced safety limiter

• EN 62368-1 compliant design

Three selectable presets:

• Live / Linear – Neutral, balanced response

• Club – Enhanced bass and high-frequency energy

• Voice – Optimised speech clarity

---

🎛 Advanced RCF DSP Technology

FiRPHASE Processing

Delivers transparent sound, precise imaging, and consistent phase response across the listening area.

Bass Motion Control®

Extends low-frequency performance while protecting the woofer from over-excursion — deeper bass without compromising reliability.

---

🚀 Fast & Flexible Deployment

• Quick-fit socket and integrated connections

• Sleek composite cabinet design

• Available in Black or White (RAL 9003)

• Included padded carrying bag for the two-piece column array

• Supports single-half-pole, full-column configuration

Despite its power, the EVOX J11 remains unobtrusive and elegant — perfect for both corporate environments and high-energy events.

---

🎵 Ideal Applications

• Professional Mobile DJs
• Live Bands
• Event Production Companies
• Churches & Worship Venues
• Corporate AV
• Large Functions & Parties

---

📊 Key Specifications

• Frequency Response: 37 Hz – 20 kHz

• Coverage: 120° x 40°

• Total Power: 3500W Peak

• Max SPL: 132 dB

• Height: 2080 mm

• Weight: 29 kg

---

Why Choose the EVOX J11?

If you need maximum output in a compact column system, the EVOX J11 delivers unmatched power, clarity, and reliability. With 3500W of peak performance, advanced RCF DSP, and premium build quality, it’s built for professionals who demand serious headroom and effortless deployment.
