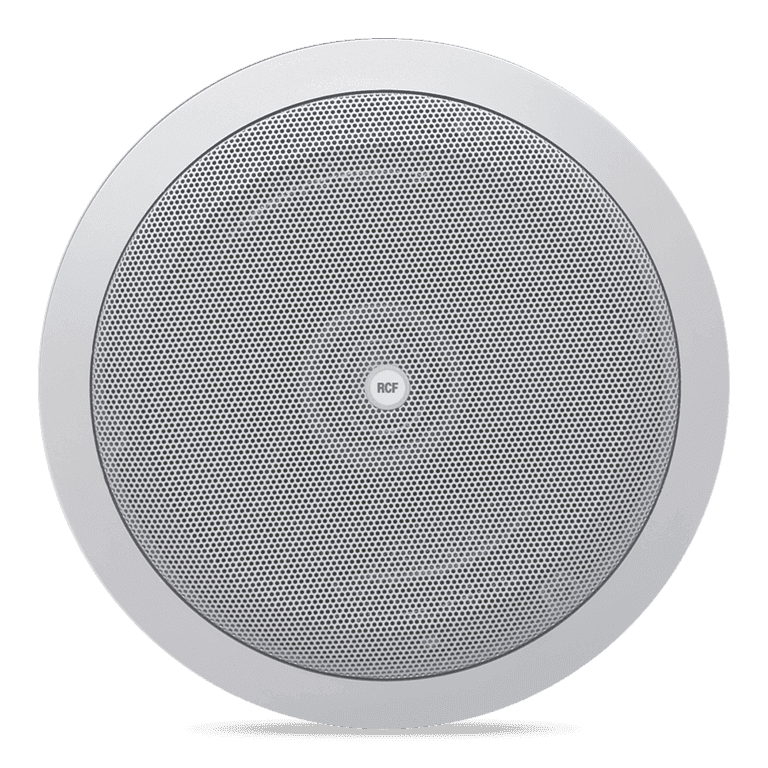

RCF PL8X 8″ Coax Ceiling Speaker

Features

8″ woofer with 1″ dome tweeter
Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
93 dB sensitivity
Colour white RAL 9003 and black RAL 9005
Plastic frame UL 94 V0, aluminium grille

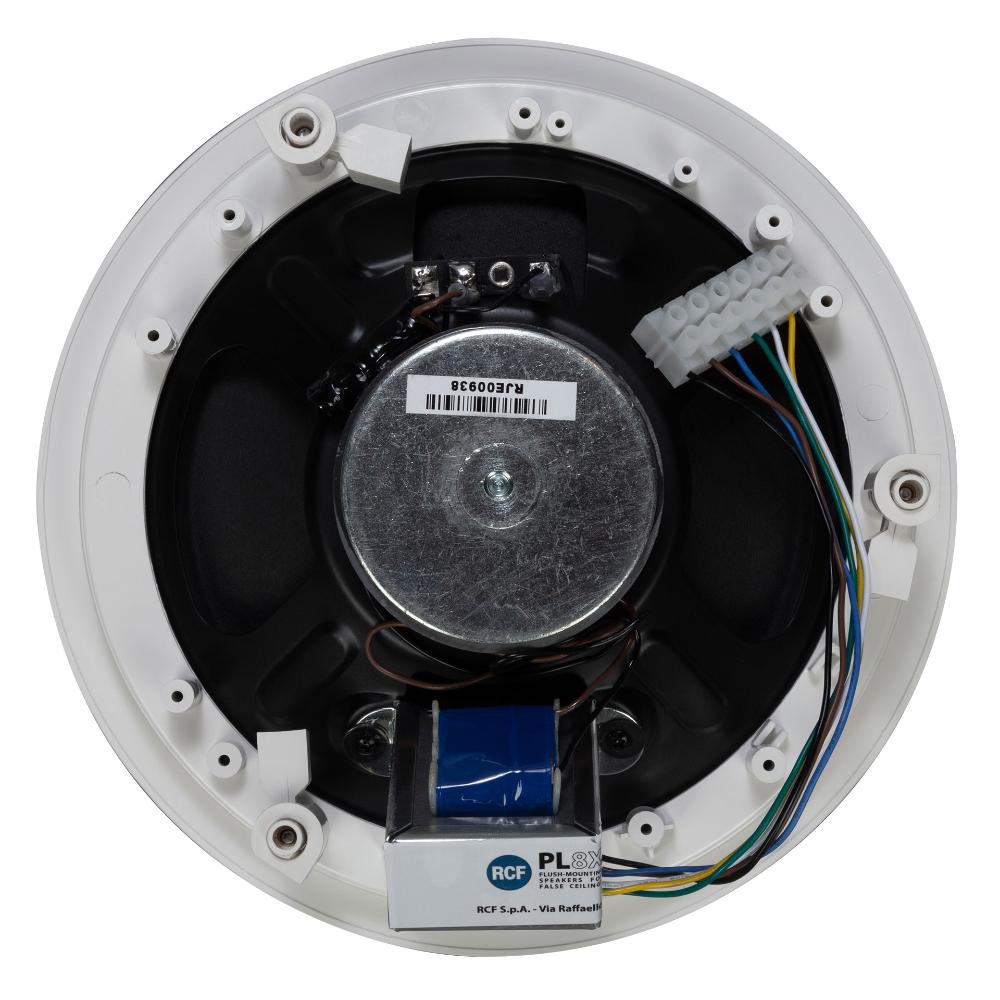

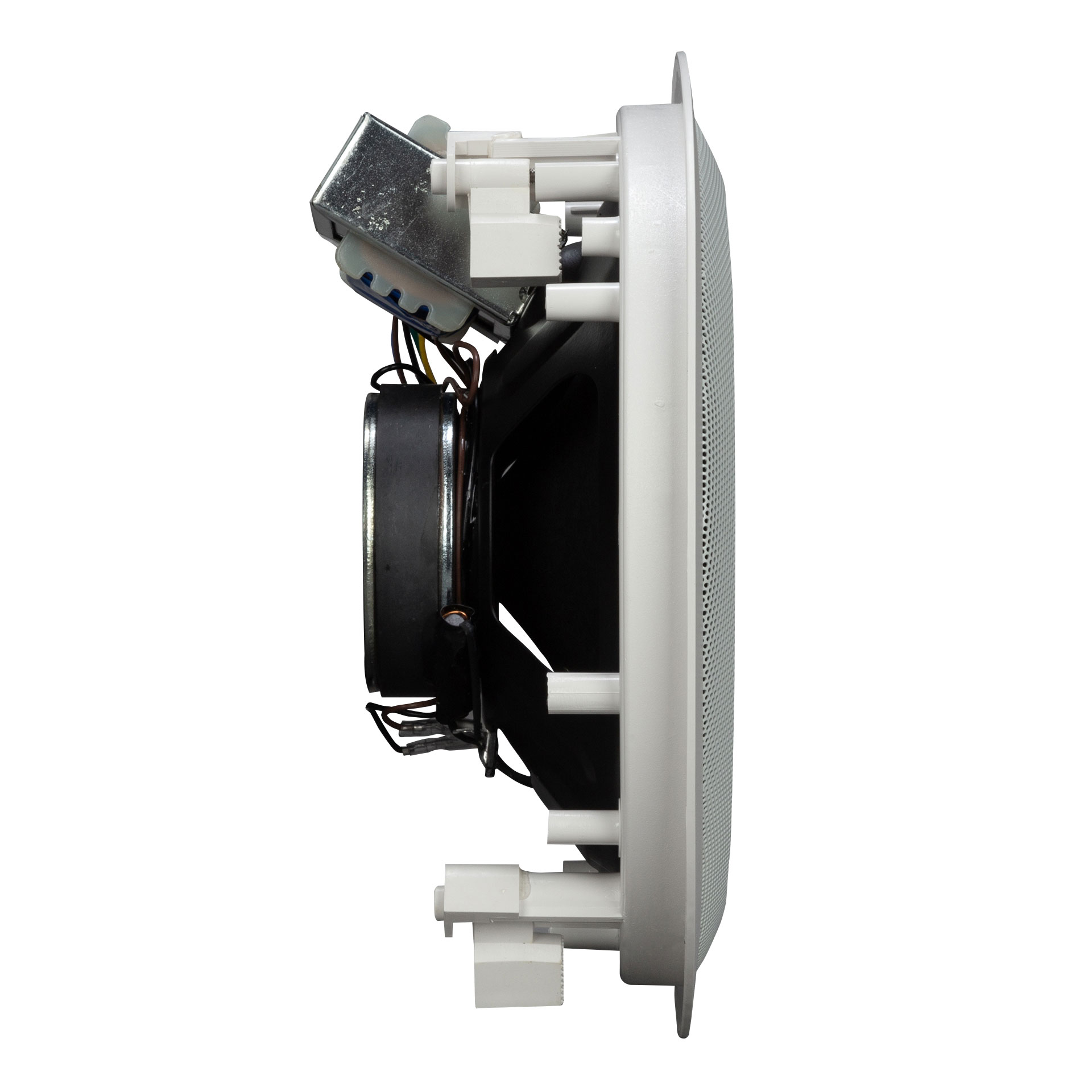

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.


Acoustical specifications

Frequency Response (-10dB)
60 Hz – 20000 Hz

Max SPL @ 1m
109 dB

Coverage angle
80°

System Sensitivity
93 dB

Power section

Amplification
Full Range

Power Handling
20 W RMS

Peak Power Handling
80 W PEAK

Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

Transducers

Dome Tweeter
1.0”

Woofer
8”

Input/Output section

Input connectors
Screw Terminals

Output connectors
Screw Terminals

Constant Voltage Transformer
70/100 V

Power selection 1
20 W – 500 ohm

Power selection 2
10 W – 1000 ohm

Power selection 3
5 W – 2000 ohm

Power selection 4
2.5 W – 4000 ohm

Standard compliance

IP protection grade
IP 44

Safety agency
CE compliant

Physical specifications

Cabinet/Case Material
Plastic

Hardware
Plastic Material

Grille
Aluminium

Color
White – RAL 9003, Black – RAL 9005

Size / Weight

Depth
88 mm / 3.46 inches

Recessed Depth
80 mm / 3.15 inches

Diameter
247 mm / 9.72 inches

Cut out diameter
224 mm / 8.82 inches

Weight
1.23 kg / 2.71 lbs

Shipping information

Package Height
280 mm / 11.02 inches

Package Width
280 mm / 11.02 inches

Package Depth
130 mm / 5.12 inches

Package Weight
2.09 kg / 4.61 lbs
