8″ premium ceiling speaker with backcan 60 watts 70V/100V/8ohm.B&W magnetic grill included.

8″ premium ceiling speaker with backcan, 60 watts 70V/100V/16Ω. B&W magnetic grilles included

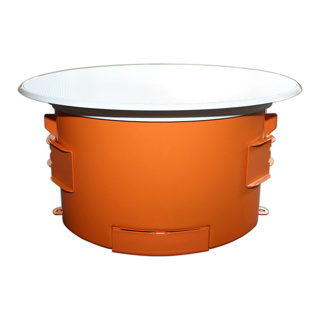

inDESIGN’s performance ceiling speaker series is a high quality premium group of products specifically designed for installation in venues that demand sonic clarity and dispersion accuracy. The all metal backcan enclosures reduce unwanted spill into roof cavities while the front baffles are imbedded with magnets to secure frameless white or black grille (included) firmly in place.

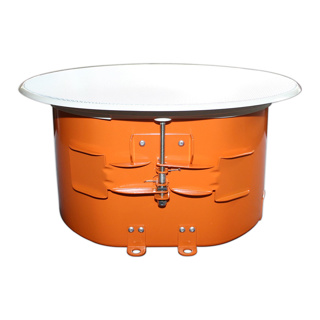

Installation is a breeze with the quick wing steel mounting system. Each product in the range offers high impedance 70V and 100V multitap options as well as a low impedance 8 ohm direct bypass, via the rotary switch fitted on the front speaker baffle. The iD-PCS4 and iD-PCS6 boast a depth of only 105mm making them suitable for most roof cavity spaces.

The iD-PCS4, iD-PCS6 and iD-PCS8 are the right choice for all installations that require quality ceiling speaker products such as: houses of worship, retail shops, lecture theatres, mass transport, boardrooms, office spaces, huddle spaces, open plan spaces, education sector and the list goes on.

Each model in the range is shipped with both black and white grilles – you make the choice!

Tile bridge accessories are available to purchase as optional extras.
Specifications

SPL 1W @ 1m: 88dB
Freq. Response ± 3dB: 100Hz – 20kHz
Tapping Selector: Rotary Switch front baffle
Transformer Taps 100V: 7.5, 15, 30, 60 watts, 16 ohm
Transformer Taps 70V: 3.75, 7.5, 15, 30 watts 16 ohm
Max Power Handling: 80W program, 60W RMS
Connection: Ceramic Screw Terminal IN/OUT
Tweeter: 1” (25mm) Titanium dome
Mid Driver: 8” (203mm) Graphite Cone with rubber surround
Operation Temperature: -25ºC / 70ºC
Speaker Cut-out Diameter: 266mm
Product Dimensions (WxD): 309 x 157 mm
Shipping Dimensions (LxWxH): 355 x 355 x 195 mm
Product Weight: 4.4kg
Gross Weight: 5.3kg
Certifications: CE, ROHS
Optional Accessories: Tile Bridge iD-TB-PCS6.8-EZF8

Disclaimer: Instructions and specifications are correct at time of printing. Information within may be subject to change without notice.
