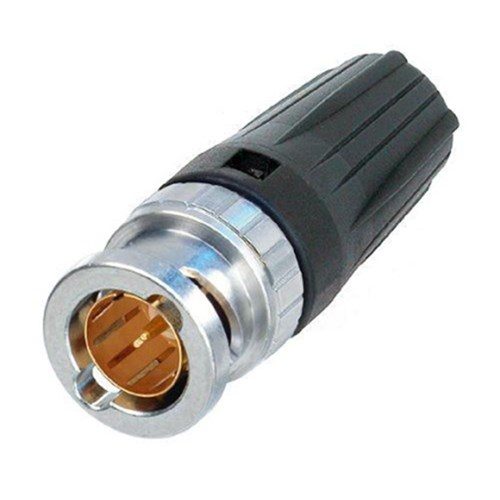

Rear Twist 75 OHM BNC Line Connector Suits Belden 1694F

Rear Twist 75 OHM BNC Line Connector Suits Belden 1694F The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 1694F, Clark Wire CD7506F-0, Kabeltronik HFV 1.0/4.8 AF- FRNC Crimp size: Pin: 1.6 mm (square) Shield: 7.36 mm (hex) FEATURES & BENEFITS “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies SPECIFICATIONS Product Title NBNC75BRU11 Connection Type BNC 75 Ω Gender male Electrical Contact resistance ≤ 3 mΩ (inner) Contact resistance ≤ 2 mΩ (outer) Dielectric strength 1,5 kVdc Impedance 75 Ω Insulation resistance > 5 GΩ Rated voltage 32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz Mechanical Cable O.D. < 7.3 mm Cable retention > 30 N (Center) Crimp size 7,36 Hex crimp (shield) acc. MIL22520/5-41(A) Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) Insertion force < 25 N Lifetime > 1000 mating cycles Locking device Bayonett Cable anchoring Jacket crimping Material Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) Insert PTFE Shell Brass (CuZn39Pb3) Shell plating Optalloy® Environmental Temperature range -30 °C to +85 °C Contact crimpability Complies with IEC 60803 and IEC 60352-2
