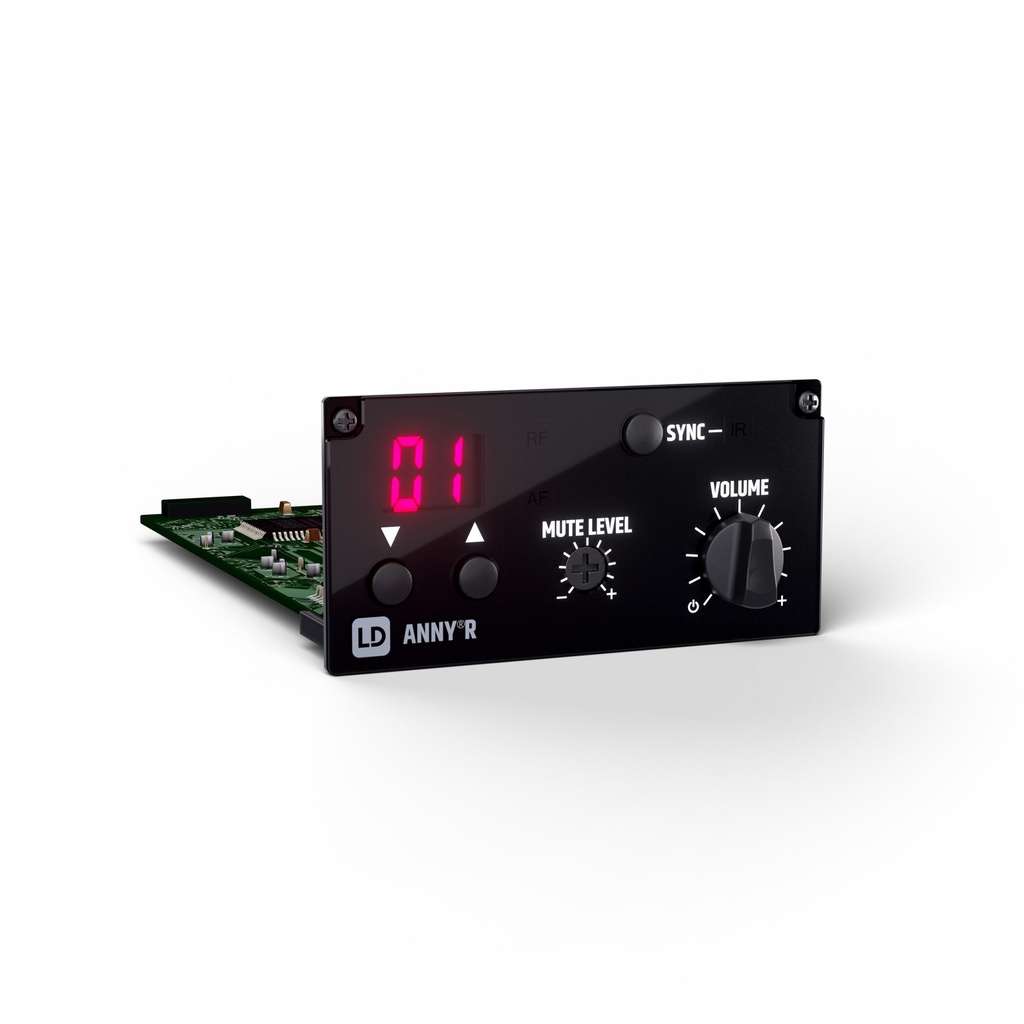

Receiver Module for ANNY B6

Radio system with FM technology incl. separate antenna
Can be retrofitted to all ANNY® loudspeakers
Reception range up to 80 m
Separate volume control
12 selectable radio channels
Mute level control (squelch)

Description

This ANNY® Receiver Module allows retrofitting of an ANNY® wireless microphone by installing it in a free receiver module slot of the ANNY® loudspeaker. It receives with the frequency band B6 the frequency range of 655 – 679 MHz. A volume control on the module allows you to set the volume level to suit your needs, while a mute level control effectively eliminates noise and interference caused by weak signals. Radio signals can be received up to 80 metres using the supplied antenna with TNC connector. The receiver is easily and conveniently synchronised via infrared with the matching ANNY® bodypack transmitter or wireless handheld microphone.

Specifications

General

Product type
Battery-powered PA speaker accessories

Type
Receivers

Modulation Type
FM

Transmission frequency range
655 – 679 MHz

Channels
12

Frequency response
50 Hz – 17 kHz

Controls
Mute Level (Squelch), Power / Volume, SYNC, Value Down, Value Up

Indicators
AF (audio signal), LED Display, RF (radio signal)

Connectors
Audio outputs, BNC-Antenna

Weight
0,08 kg
