Product Features
- 2.4 GHz Digital USB Receiver
- Built into a USB Stick
- Easy Pairing for Fast Set Up
- 100′ Operating Range
- Compatible with XPD1 Presentation System
Overview

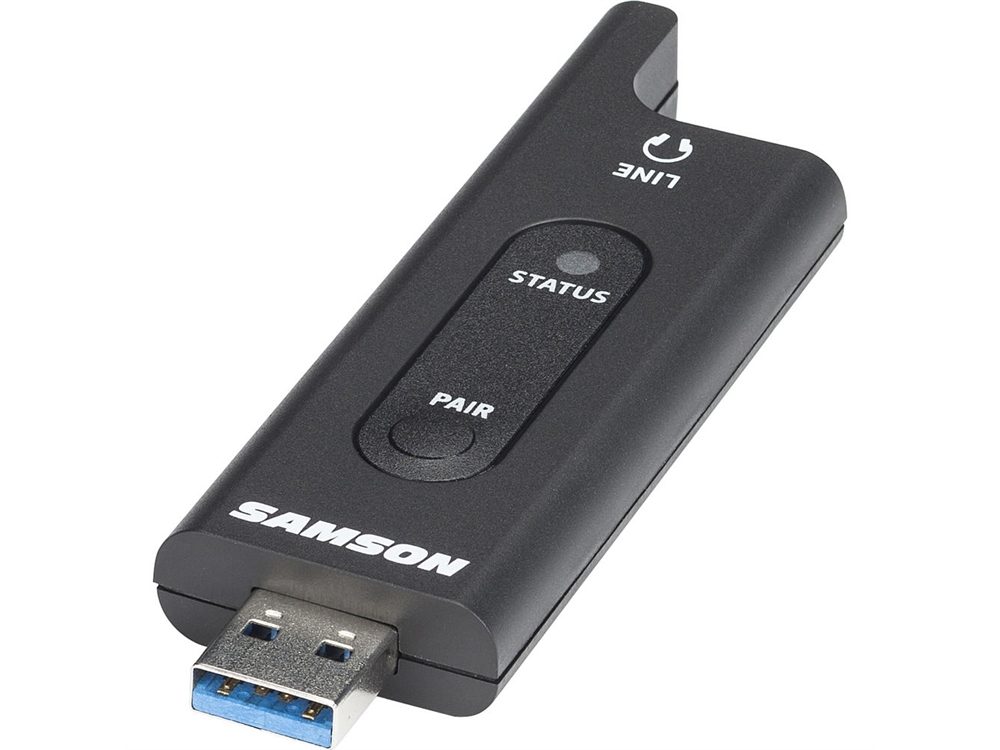

The Stage Series RXD2 Wireless USB Receiver from Samson brings the convenience of a 2.4 GHz receiver to your digital communications. It can be used when paired with a microphone and a beltpack transmitter (sold separately) to capture audio straight to your Mac or Windows computer using your favourite digital audio software, which is ideal for capturing dynamic performances at gigs, and more.
The USB receiver provides over 100′ of wireless range (environment-dependant) and is built with 1-touch pairing, an LED status indicator that displays the operation mode, and a line/headphone output to connect to an analogue line input or headphones for monitoring. Furthermore, the receiver is ideal for broadcasting, live streaming, presentations, and more. It is also compatible with Samson Expedition Series portable PAs.
Specifications
| Wireless Transmission | Digital UHF (2.4 GHz) |
| Number of RF Channels | 1 |
| Max Systems per Setup | 2 |
| Modulation | GFSK |
| Receiver | |
| Form Factor | USB Stick |
| Antenna | 1 x 1/4 Wave Internal |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8″ / 3.5 mm TS Female Unbalanced Headphone Output |
| Audio Output Level | 1/8″ / 3.5 mm Output: 9 dBu |
| Frequency Response | 20 Hz to 17 kHz |
| USB Port | 1 x USB Type-A (Bus Power, Charging, Host Connection) |
| Power Requirements | USB Bus Power |
| Display & Indicators | 1 x LED (Data Transmission, Host Connection, Power) |
| Housing | ABS |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Dimensions | 3.5 x 0.9 x 0.3″ / 89.0 x 23.0 x 8.0 mm |
| Weight | 0.4 oz / 10.0 g |
