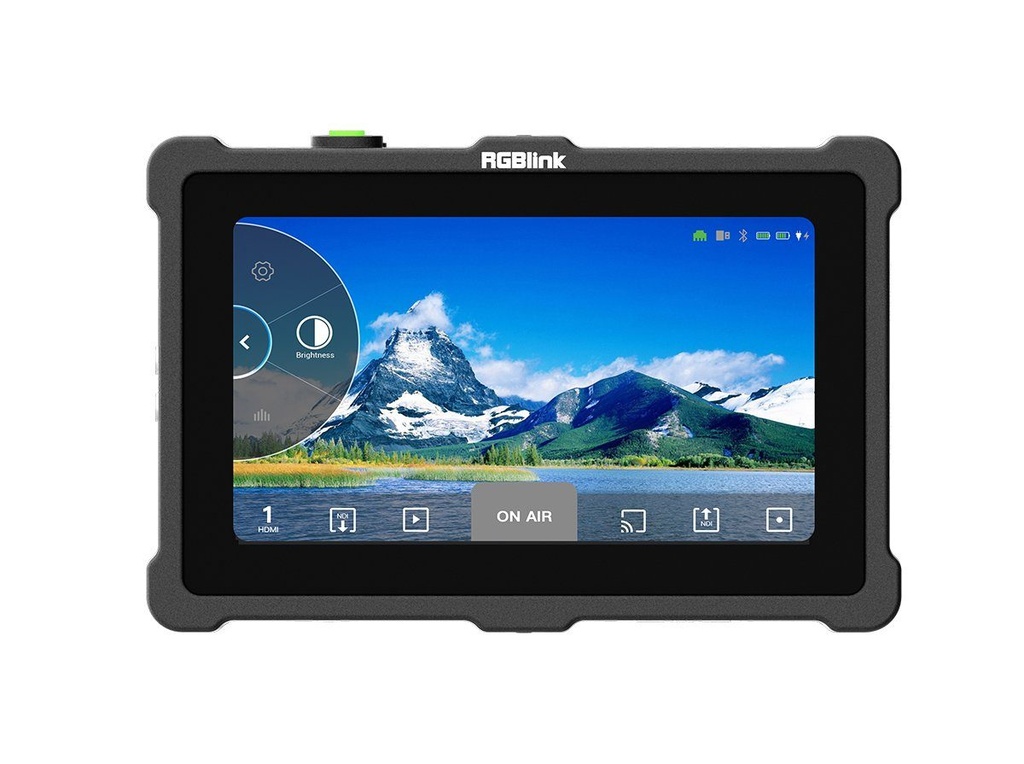

TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargeable battery extending its capacity for outdoor application.
- 5.5-inch touchscreen operation
- Network HD streaming
- Seamless switcher
- 2*UVC inputs,2*HDMI 1.3 input and 1* HDMI 2.0 output
- HDCP supported
- NDI 5.0 encoder
-
NDI decoder
-
Recording via USB 2.0 port, mobile hard disk stores up to 2T
-
Multistream up to 4 Live Streaming platforms simultaneously
| Connectors | Input | HDMI 1.3 | 2×HDMI-A | ||||
| USB 3.0 | 2×USB TypeA | ||||||
| Output | HDMI 2.0 | 1×HDMI-A | |||||
| Record | USB 2.0 | 1×USB TypeA | |||||
| Audio | In | 1×3.5mm Audio Jack | |||||
| Out | 1×3.5mm Audio Jack | ||||||
| Communication/Stream | LAN | 1×RJ45 | |||||
| Power | 1×USB-C | ||||||
| Performance | Input Resolutions | HDMI | |||||
| SMPTE | 720p@50/60 | 1080p@23/24/60 | ||||||
| VESA | 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | | ||||||
| 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | |||||||
| Output Resolutions | HDMI | ||||||
| SMPTE | 720p@50/60 | 1080p@24/25/50/60 | 2160p@60 | ||||||
| VESA | 1024×768@60 | 1280×720@50/60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | | ||||||
| 1920×1080@50/60 | 3840×2160@60 | |||||||
| Supported Standard | HDMI | 1.3(Input) | 2.0(Output) | |||||
| USB | 3.0 | ||||||
| Screen Feature | Screen Dimension | 5.5 ’’TFT | |||||
| Resolution | 1080×1920 pixels | ||||||
| Dot Pitch | 0.063(H)×0.021(W)(mm) | ||||||
| Aspect Ratio | 16:9 | ||||||
| Brightness | 450cd/m² | ||||||
| Contrast | 1000:1 | ||||||
| Backlight | LED | ||||||
| View Angle | 80°/80°(L/R)80°/80°(U/D) | ||||||
| Power | Input Voltage | 9V/2A | |||||
| Max Power | 18W | ||||||
| Environment | Temperature | 0℃~55℃ | |||||
| Humidity | 5%~85% | ||||||
| Physical | Weight | Net | 350g(without battery);882g(with battery) | ||||
| Package | 770g | ||||||
| Dimension | Net | 161mm×106mm×36mm | |||||
| Package | 255mm×145mm×85mm | ||||||
