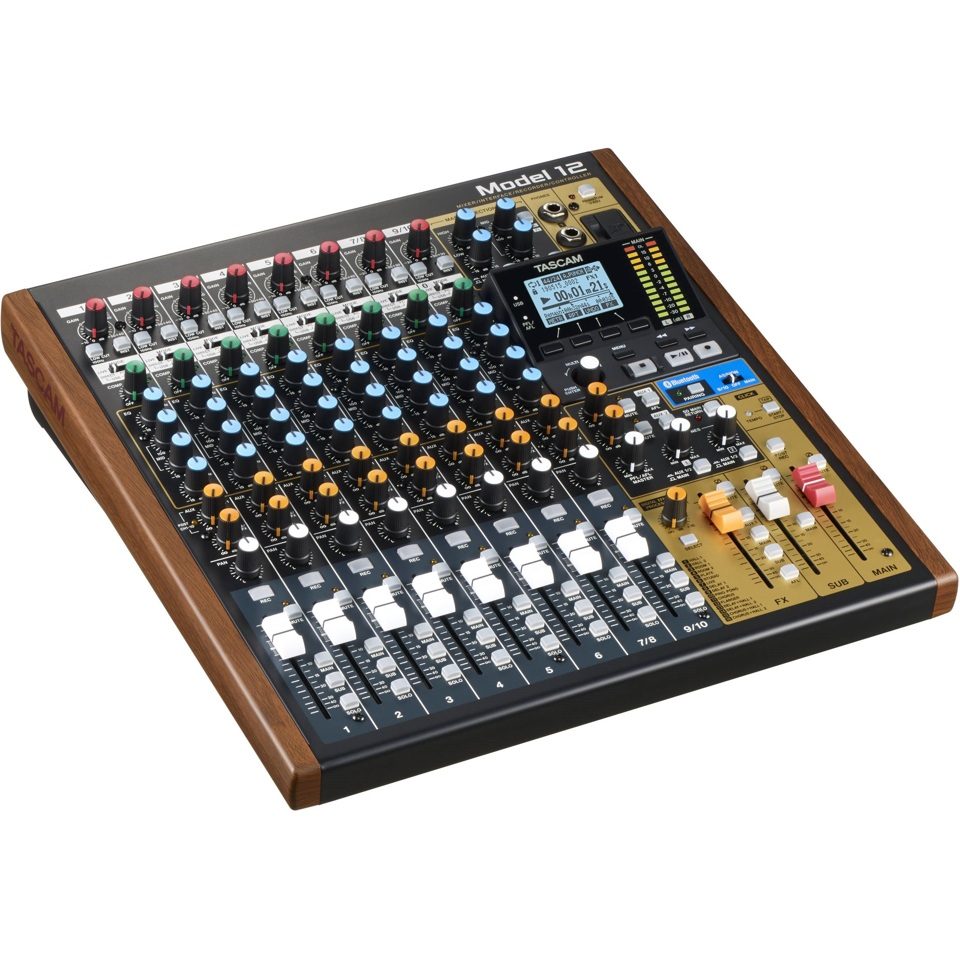

Tascam Model 12 Digital 12ch Hybrid Mixer

Building upon the success of the Model 24 and Model 16, the highly flexible Tascam Model 12 Digital Mixer is an all-in-one production mixer for music and multimedia creators, songwriters, and performers. This powerful, versatile hybrid mixer/recorder/audio interface is designed for both live and recording applications and is well suited for bands, studios, conferences, podcasts, houses of worship, and more.
Updates to the Model 12 include an integrated MIDI I/O with a built-in metronome and separate click output. The 5-pin DIN connectors integrate with other outboard MIDI gear for synchronisation and playback allowing for drum machines, synthesisers, and hardware sequencers to play nicely with the Model 12. Other useful updates for the podcaster / internet streamer include Bluetooth pairing, mix-minus, smartphone input, multiple mic-ready channels, dual headphone monitoring, and internal multitrack recording, which allows the device to be used as a powerful live production recorder, USB audio interface, and live streaming tool.
The professional mixer offers 10 input channels including 8 microphone preamps with phantom power, eight 1/4″ Hi-Z jacks, 10 balanced 1/4″ mono line inputs. Additionally, channels 9/10 stereo input also accepts signals from a variety of sources including Bluetooth, USB, or a 3.5mm stereo mini jack.
There is single-knob compression available on all input channels, while two auxiliary sends provide signal routing to dedicated outboard monitors or effect. Aux 2 also sends to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping as well as a dedicated 2-band AEQ for fine tuning your mix. The Model 12 offers 11 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB audio interface, allowing for versatility in any environment.
The onboard 12-track recorder takes its cue from Tascam’s Portastudio line, offering multitrack recording with the ability to record 10 tracks plus the stereo master internally. Multichannel playback for advanced live performance backing or mixing. What’s more, the simple interface allows you to punch in/out of recording and playback without extensive menu diving. Additionally, the Model 12 features a 12 x 10 USB audio interface allowing for the transmission of 10 input channels plus the stereo master at up to 24-bit/48 kHz resolution.
Key Features:

8 XLR mic inputs (with +48V support) / 10 TRS line inputs, 3.5mm stereo input and Bluetooth 5.0 input.
1-knob compressor and 3-band AEQ on all input modules.
Equipped with 60mm faders.
Selectable PFL/AFL modes and in-place solo (SIP)
Stereo output to Main L-R and Sub L-R, monaural send to Aux 1 and Aux 2.
Dual headphone outputs with individual volume and source selection.
TASCAM FX equipped.
Recording function with punch in/out support allows direct SD card 12-track recording / 10-track playback.
12-in / 10-out USB audio interface function (USB Type-C connector)
Built-in metronome function.
Bluetooth 5.0 input with AAC and SBC codec support.
Equipped with MIDI In/Out connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support.
Supports simple DAW control (HUI/MCU protocol emulation)
Click output with Tap Tempo support.
Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
Smartphone input with minus one function.

Specifications

Operating System

Windows OS
Windows 10 (May 2019 Update), Windows 8.1, Windows 7

Mac OS
macOS Catalina, macOS Mojave, macOS High Sierra (10.13), macOS Sierra‎ (10.12), OS X El Capitan (10.11)

System Requirements

CPU
Dual Core / 2 GHz or Faster

Memory
2 GB or More

Driver
Windows: USB Audio Class 2.0, ASIO2.0, WDM (MME)Mac: Core Audio

Screen
1280 × 800

Audio Performance

Residual Output Noise
Main Output: -100 dBu (Main Fader at Min)

EIN
Mono Input Channel: 127 dBu (Rs: 150 Ohms, Gain Knob: Max)

THD
Mic In to Main Out: 0.01% or Less (Max Input Level, +10 dBu, 1 kHz, Gain Min.)Mic In to Main Out: 0.004% or Less (Nominal Input Level, +4 dBu, 1 kHz, Gain Min.)

Frequency Response
Analogue: 20 Hz to 30 kHz (+0.5/-1 dB)Digital: 20 Hz to 20 kHz (+0.5/-1 dB)

Crosstalk
Channe / Input and Output: -80 dB (1 kHz, Pan Fully Counter Clockwise / Fully Clockwise)

Maximum Gain
Mic – Main Out: 74 dBMic – Insert Out: 50 dBMic – Sub Out: 74 dBMic – CR Out: 79 dBMic – Monitor Out: 75 dBMic – FX Out: 75 dBUSB/SD – Main Out: 24 dB(AEQ Flatten, Pan Fully Counter Clockwise / Fully Clockwise)

Recording Specifications

Recording
Supported Media:SD: 512 MB to 2 GBSDHC: 4 GB to 32 GBSDXC: 64 GB to 512 GBClass 10 or Higher RequiredFile System:SD Card: FAT16SDHC Card: FAT32SDXC Card: exFATRecording File Format: WAV (BWF)Playback Format: WAV (BWF)Sampling Frequency: 44.1/48 kHzBit Depth: 16-/24-BitRecordable Channels: Maximum 12 Channels (10 Channel + 2 Stereo Mix)

Analogue Audio Inputs

Mic Input
Mic In: Channel 1 to 6, 7/8 to 9/10Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)Maximum Input Level: +10 dBuNominal Input Level: -8 dBuMinimum Input Level: -58 dBuGain Adjustable Range: 0 to 50 dBInput Impedance: 1.8 KilohmsPhantom Power Supply: +48V

Line Input
Line In: Channels 1-6, 7/8, 9/10Connector: 1/4″ / 6.35 mm TRS Phone Jack (Balanced)Maximum Input Level: +22 dBuNominal Input Level: +4 dBuInput Impedance: 22 KilohmsGain Adjustable Range:Channels 1 to 6: -10 to +40 dBChannels 7/8 and 9/10: -20 to +30 dB

Instrument Input
Instrument In: Channels 1-6, 7, 9Connector: 1/4″ / 6.35 mm TRS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)Maximum Input Level: +22 dBuNominal Input Level: +4 dBuGain Adjustable Range: -10 to +40 dBInput Impedance: 1 Megohm

Insert
Insert: Channels 1 & 2Connector: 1/4″ / 6.35 mm TRS Phone Jack (T: Send, R: Return, S: GND)Return (Ring)Maximum Input Level: +18 dBuNominal Input Level: 0 dBuInput Impedance: 10 KilohmsSend (Tip)Maximum Output Level: +18 dBuNominal Output Level: 0 dBuOutput Impedance: 100 Ohms

Stereo Input
Connector: 1/8″ / 3.5 mm Stereo Mini Jack (Unbalanced)Maximum Input Level: +8 dBVNominal Input Level: -10 dBVInput Impedance: 10 Kilohms

Analogue Outputs

Main Output
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD)Maximum Output Level: +22 dBuNominal Output Level: +4 dBuOutput Impedance: 100 Ohms

Other Outputs
Sub Out (L/R), Aux Out (1/2), Click (Mono)Connector: 1/4″ / 6.35 mm TRS Phone Jack (T: HOT, R: COLD, S: GND)Maximum Output Level: +16 dBuNominal Output Level: -2 dBuOutput Impedance: 100 Ohms

Phones
Headphones Out: 1 and 2Connector: 1/4″ / 6.35 mm Stereo Phone JackOutput Level: 80 mW + 80 mW (32 Ohms Loaded)

Remote

Footswitch
1/4″ / 6.35 mm TS Phone Jack

USB

USB
Connector: Type-C Format: USB 2.0 High-Speed, Mass Storage Class/USB Audio ClassSampling Rate: 44.1/ 48 kHzBit Depth: 16-/24-BitMaximum Input and Output: 12 Inputs / 10 Outputs

Bluetooth Specifications

Bluetooth
Output Class: Class 2Transmission Range: Approximately 33′ / 10 m (Transmission Range May Vary, Depending on Surroundings)Bluetooth Version: 5.0Supported Profile: A2DP, AVRCP 1.0Supported A2DP Codecs: SBC, AACA2DP Content Protection: SCMS-T

Equaliser

Channel AEQ
Low-Cut: 100 Hz, -18 dB/OctaveHi-Shelving: +15 dB/-15 dB, Cut Off Frequency: 10 kHzMid (Peaking): +15 dB/-15 dB, 100 Hz to 8 kHz VariableMID-Band Q Fix: 0.55Low-Shelving: +15 dB/-15 dB, Cut Off Frequency: 80 Hz

Master Section
Hi-Shelving: +15 dB/-15 dB, Cut Off Frequency: 10 kHzLow-Shelving: +15 dB/-15 dB, Cut Off Frequency: 60 Hz

Effects

Effect Types
Small HallLarge HallSmall RoomLarge RoomPlateStudioLiveShort DelayDelayPing-PongChorusFlangerDelay + Small HallDelay + Large HallChorus + Small HallChorus + Large Hall

MIDI

MIDI I/O
2 x 5-Pin DIN ConnectorsCan Sync with Other External MIDI Devices (Drum Machines, Synthesisers, Hardware Sequencers)

Power Specifications

Power
Power Adapter: 15 VDCCentre Pin Positive

Physical

Operating Temperature
41 to 95°F / 5 to 35°C

Dimensions
Not Specified by Manufacturer

Weight
Not Specified by Manufacturer
