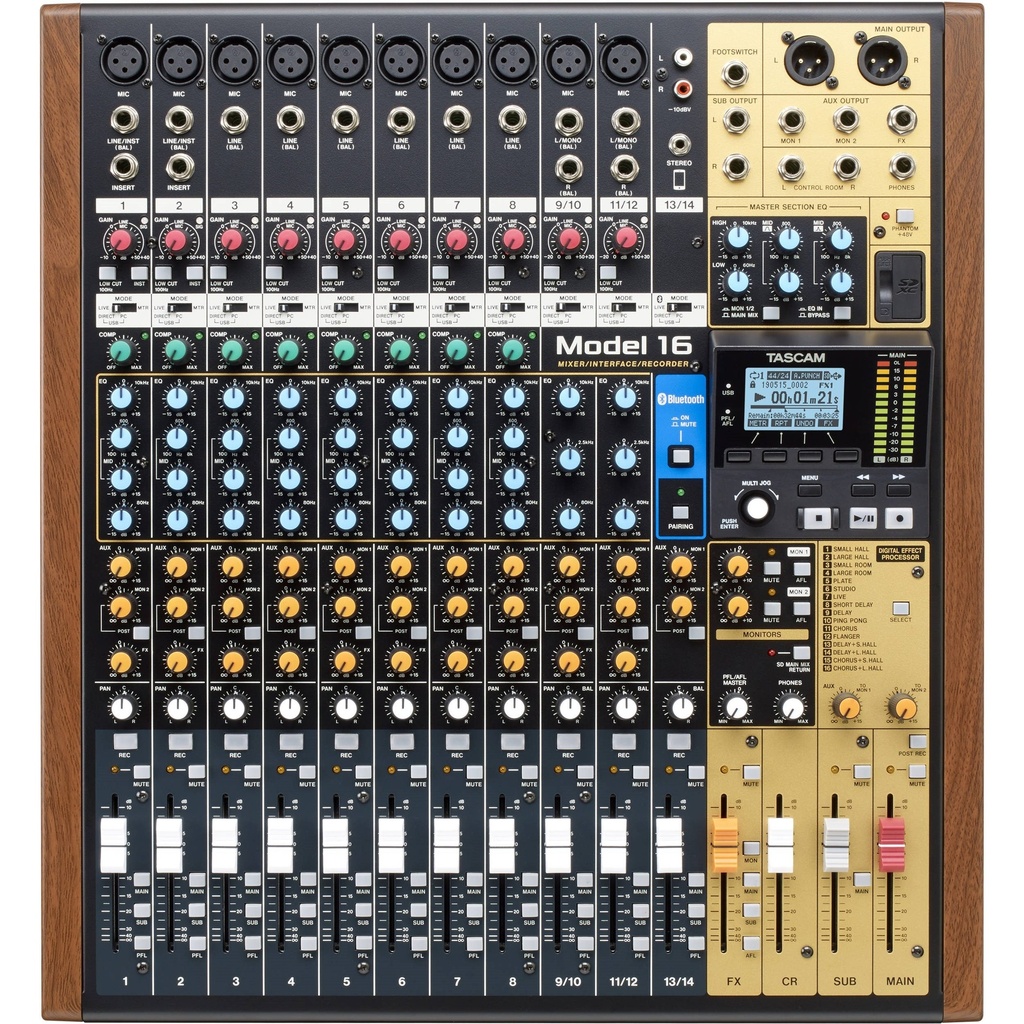

The highly flexible Tascam Model 16 is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels including 10 HDDA microphone preamps with phantom power, two 1/4″ Hi-Z jacks, eight balanced 1/4″ mono line inputs, and two balanced 1/4″ stereo line inputs. Additionally, the last stereo input can accept signals from a variety of sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.
There is single-knob compression available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable and assignable 4-band semi-parametric AEQ for fine tuning your mix. The Model 16 offers 15 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, allowing for versatility in any environment. The integrated 16-track recorder takes its cue from Tascam’s Portastudio line, offering multitrack recording with the ability to record the 14 input channels plus the main mix to an SD card as well as multichannel playback for advanced live performance backing or mixing. What’s more, the simple interface allows you to overdub and punch in/out without extensive menu diving. Additionally, the Model 16 features a built-in 16×14 USB 2.0 audio interface (up to 24-bit / 48 kHz resolution) for DAW-based recording and playback.
Key Features
Mixer
14 total input channels
10 microphone preamps with 48V phantom power
Two Hi-Z instrument inputs
12 balanced line inputs (eight mono, two stereo)
Single stereo channel for Bluetooth, USB, RCA, or 3.5mm stereo input
Inserts on channels 1-2
Main and sub stereo buses
Three aux sends (monitor 1, monitor 2, and effects)
Single-knob compressor for channels 1-8
4-band semi-parametric stereo AEQ selectable for main or monitor outputs
Wireless Bluetooth 5.0 connectivity
Onboard effects processor with 16 editable and foot-controllable effects presets including reverb, delay, chorus, and flanger
60mm faders capable of fine adjustment
Independent input channel assign for live, internal MTR, or USB playback
Balanced XLR main outputs
Balanced 1/4″ TRS sub outs, aux outputs, and control room outputs
1/4″ stereo headphone output with dedicated volume control
Recorder
Multitrack recording function similar to the TASCAM Portastudio
16 tracks (14 input channels plus the main mix) can be recorded to an SD card
Multichannel playback for advanced live performance backing or mixing
Punch in/out recording capability
Overdub up to eight tracks simultaneously
Audio Interface
USB 2.0 audio interface
16 inputs (14 input channels plus the main mix)
14 outputs
Up to 24-bit / 48 kHz recording quality
Low round-trip latency
Optional Accessories
RC-1F footswitch (available separately) allows hands-free control of effects switching
Model 16 rackmount kit (available separately) enables convenient mounting in a 19″ equipment rack
Model 16 dust cover (available separately) protects the Model 16 from dirt, scratches, and moisture
Specifications
System Specifications
System Requirements
macOS 10.12 or Later2 GHz or Faster Dual-Core CPU2 GB RAM1280 x 800 Minimum Screen ResolutionCore Audio DriverAvailable USB 2.0 PortWindows 7 SP1 or Later (32-/64-Bit)2 GHz or Faster Dual-Core CPU2 GB RAM1280 x 800 Minimum Screen ResolutionUSB Audio Class 2.0, ASIO2.0, or WDM (MME) DriverAvailable USB 2.0 Port
Memory Card Support
SD: 512 MB to 2 GBSDHC: 4 GB to 32 GBSDXC: 64 GB to 512 GBClass 10 or Higher Required
File System
SD: FAT16SDHC: FAT32SDXC: exFAT
Audio File Formats Supported
WAV (BWF)
Bit Depth
16-/24-Bit
Sampling Frequency
44.1 or 48 kHz
Input Channels
14
USB Audio In/Out
Inputs: 16Outputs: 14Format: USB 2.0 High-Speed, Mass-Storage Class / USB Audio Class
Connectivity
Inputs
10 x 3-Pin XLR Female Mic Inputs (Balanced)12 x 1/4″ TRS Female Line Inputs (Balanced)2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced)1 x 1/8″ / 3.5 mm Stereo Mini Jack (Unbalanced)
Inserts
2 x 1/4″ TRS (Unbalanced, Tip = Send, Ring = Return, Sleeve = Ground)
Outputs
2 x 3-Pin XLR Male Main Outputs (Balanced)3 x 1/4″ TRS Female Aux Outputs (Balanced)2 x 1/4″ TRS Female Control Room Outputs (Balanced)2 x 1/4″ TRS Female Sub Outputs (Balanced)1 x 1/4″ TRS Female Stereo Headphone Output (Unbalanced)
Footswitch Input
1 x 1/4″ TS
Host Connection
1 x USB 2.0 Type-B
Bluetooth Specifications
Bluetooth Class
Class 2
Bluetooth Range
Up to 32.8′ / 10 m
Bluetooth Profile Support
A2DPAVRCP 1.0
Bluetooth Codecs
AACSBC
Content Protection
SCMS-T
Equaliser
Channel AEQ
Low Cut: 18 dB/Octave at 100 HzLow Shelving: ±15 dB at 80 HzMid Peaking (Mono): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 0.55Mid Peaking (Stereo): ±15 dB at 600 Hz, Q= 0.55MID-Band Q Fix: 0.55High Shelving: ±15 dB at 12 kHz
Master AEQ Frequency
Low Shelving: ±15 dB at 60 HzMid Peaking (Narrow): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 5Mid Peaking (Wide): ±15 dB, 100 Hz to 8 kHz Variable Frequency, Q = 0.5High Shelving: ±15 dB at 10 kHz
Audio Performance
Maximum Input Level
XLR Mic Inputs: +10 dBu1/4″ Line Inputs: +22 dBuInsert Returns: +18 dBuRCA Inputs: +8 dBV3.5 mm Input: +8 dBV
Nominal Input Level
XLR Mic Inputs: -8 dBu1/4″ Line Inputs: +4 dBuInsert Returns: 0 dBuRCA Inputs: -10 dBV3.5 mm Input: -10 dBV
Minimum Input Level
XLR Mic Inputs: -58 dBu
Gain Range
XLR Mic Inputs: 0 to 50 dB1/4″ Line Inputs 1-8: -10 to +40 dB1/4″ Line Inputs 9-12: -20 to +30 dB
Maximum Output Level
Main Outputs: +22 dBuSub, Monitor, FX, and Control Room Outputs: +16 dBuInsert Sends: +18 dBuHeadphone Output: 80 mW per Channel
Nominal Output Level
Main Outputs: +4 dBuSub, Monitor, FX, and Control Room Outputs: -2 dBuInsert Sends: 0 dBu
Frequency Response
Analogue: 20 Hz to 30 kHz (+0.5 dB, -1.0 dB)Digital: 20 Hz to 20 kHz (+0.5 dB, -1.0 dB)
Maximum Gain
Mic to Main Out: 74 dBMic to Insert Out: 50 dBMic to Sub Out: 74 dBMic to Control Room Out: 79 dBMic to Monitor Out: 75 dBMic to FX Out: 75 dBUSB/SD to Main Out: 24 dB
Total Harmonic Distortion
Maximum Input Level: <0.01% (Gain Knob Minimum, +10 dBu, 1 kHz, Mic In to Main Out)Nominal Input Level: <0.004% (Gain Knob Minimum, +4 dBu, 1 kHz, Mic In to Main Out)
Crosstalk
-80 dB (Channels/Input and Output, 1 kHz)
Residual Output Noise
-100 dBu (Main Out, Main Fader at Minimum)
Equivalent Input Noise
-127 dBu (Mono Input Channel, 150-Ohm Resistance, Gain Knob at Maximum)
Input Impedance
XLR Mic Inputs: 1.8 Kilohms1/4" Line Inputs: 22 KilohmsInsert Returns: 10 KilohmsRCA Inputs: 10 Kilohms3.5 mm Input: 10 Kilohms
Output Impedance
Main Outputs: 100 OhmsSub, Monitor, FX, and Control Room Outputs: 200 OhmsInsert Sends: 100 OhmsHeadphone Output: 32 Ohms
Power Specifications
Phantom Power
+48 VDC, Globally Selectable
Power Consumption
40 W
Power Requirements
100 to 240 VAC, 50/60 Hz
Physical
Operating Temperature
41 to 95°F / 5 to 35°C
Dimensions (W x D x H)
16.9 x 18.2 x 4.4" / 43 x 46.3 x 11.3 cm (Including Knob Height and Protrusions)
Weight
15.4 lb / 7 kg
