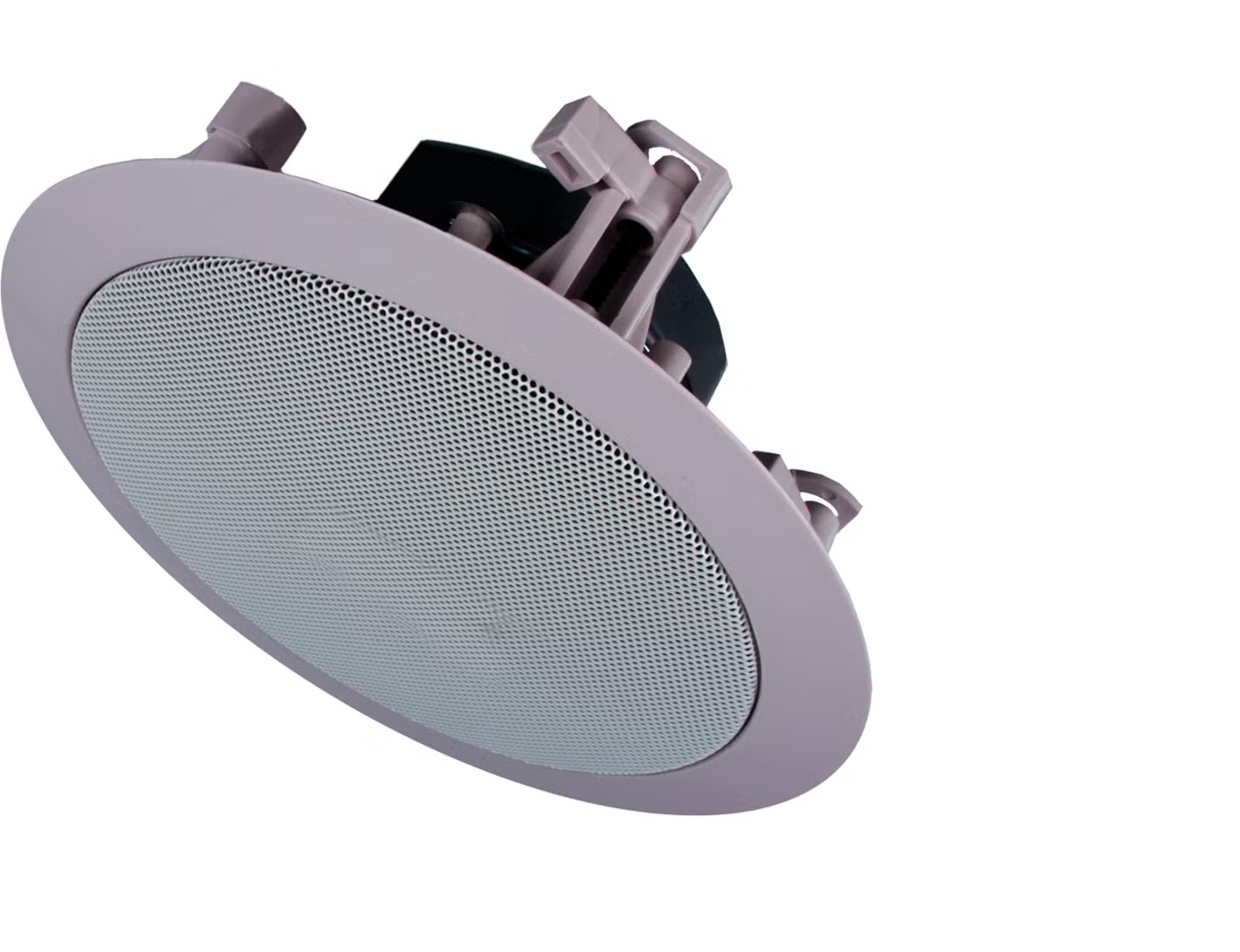

The CS series loudspeakers are high-quality in-ceiling loudspeakers, delivering exceptional sound quality and value for a wide variation of applications, ranging from paging and announcements to background music systems in a wide range of business applications, including hotels, restaurants and pubs, corporate offices, retail stores, etc. The CS55 in-ceiling loudspeaker features a 5 ¼” dual cone driver with a continuous power handling of 10 Watt and a maximum power handling of 20 Watt. The dual-cone construction makes the CS55 the perfect match for a wide variation of general purpose indoor applications ranging from paging and announcement systems to background music systems. A multi-tapping line transformer fitted with Fast-con™ allows fast and smooth connections to 100 Volt public address or low impedance systems. The mounting of the loudspeaker into the ceiling is achieved with a Quick-fix mechanism, offering great installers convenience and lifetime stability. The construction of the speakers’ housing is made out of high-quality ABS while the front is covered by a solid powder-coated steel grill. It comes available in different colours, while custom painting is possible for a total blending into any environment.
Technical specifications
System specifications
| Speaker type |
Dual cone |
| Program power handling |
20 W |
| Continuous power (AES) |
10 W |
| Impedance |
8 Ω (CS55) |
| |
16 Ω (CS55D) |
| Line Transformer Tappings |
1 |
6 W / 1667 Ω |
| |
2 |
3 W / 3333 Ω |
| |
3 |
1.5 W / 6667 Ω |
| Sensitivity (1W/1m) |
93 dB |
| Sound Pressure (Max. W/1m) |
109 dB |
| Frequency |
Response (± 3 dB) |
70 Hz – 14 kHz |
| |
Range (-10 dB) |
55 Hz – 16 kHz |
| Dispersion |
Conical |
140° (Half space (flush mounted in ceiling), average 100 Hz to 10 kHz @ -6 dB) |
| Connectors |
Multi-tap Fast-con™ connections |
| Drivers |
5 1/4” |
Product Features
| Dimensions |
202.5 x 67 mm (Ø x D) |
| Weight |
0.750 kg (CS55) |
| |
0.550 kg (CS55D) |
| Construction |
ABS |
| Front finish |
Steel grill |
| Cut-out measurement |
165 mm (Ø) |
| Built-in depth |
62 mm |
| Mounting & handling |
QuickFit™ installation system (4-screw) |
