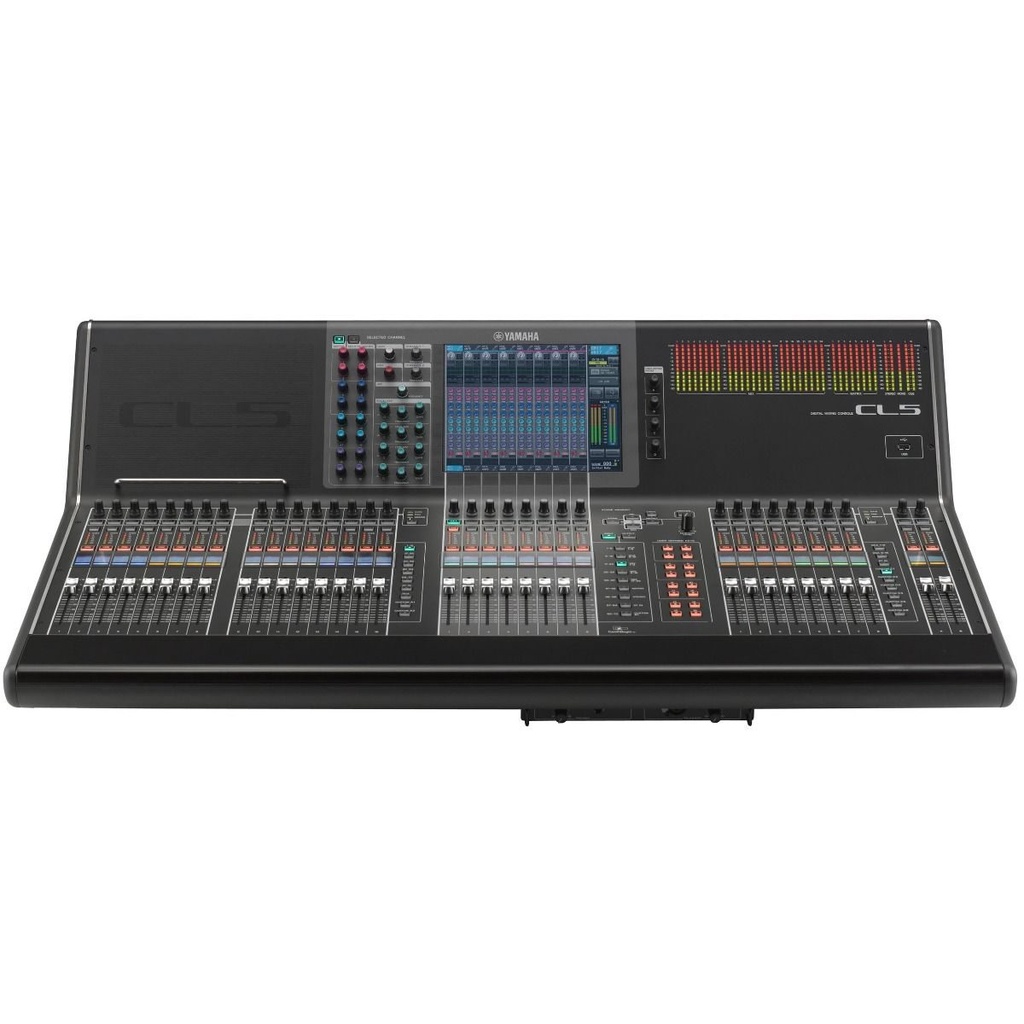

Yamaha CL5 Digital Mixer

The CL-series represents a scalable, versatile network mixing system for live-sound, theatre, broadcast and more. All CL-series mixing consoles offer 24 Mix, 8 Matrix, Stereo and Mono busses plus dedicated Cue and Monitor busses.

Processing packages include Dan Dugan Sound Design automatic microphone mixing and Neve Portico VCM effects. Broadcast functionality includes 5.1 mixing and monitoring, mix-minus and mono channel handling as well as support for many third-party broadcast automation systems.

CL-series consoles can accept 3x MY-series expansion cards. A Dante interface is built-in as standard for connection to R-series remote i/o interfaces as well as any other Dante-equipped device.

Editable channel name displays above each fader automatically switch to a larger character size for short names, and show pan and fader values as well. Below each channel name display is a color bar that illuminates in any of eight selectable colors.

Just about any of the console’s variable parameters can be assigned to the four User Defined Knobs for direct, instant access!

CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.

Key Features:

• 16-Fader Left section, 8-Fader Centralogic section, 8-Fader Right section, 2-Fader Master section
• Meter Bridge inbuilt
• 24 Mixes / 8 Matrices
• 16 DCA’s / 8 Mute Groups
• Input Delay
• Output Port Delay
• 8 Premium Racks
• 8 Effect Racks
• 16 GEQ Racks
• Channel PEQ / Dynamics
• 300 Scene Memories
• 16 User Defined Keys
• 4 User Defined Knobs
• Fader Bank
• Inbuilt Dante
• USB Memory Recorder
• Dante Virtual Soundcard / Nuendo Live
• GPI
• CL Editor
• CL StageMix
• Colsole File Converter
• 3 MY Card Slots
