Description
POWER TO PLAY
Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

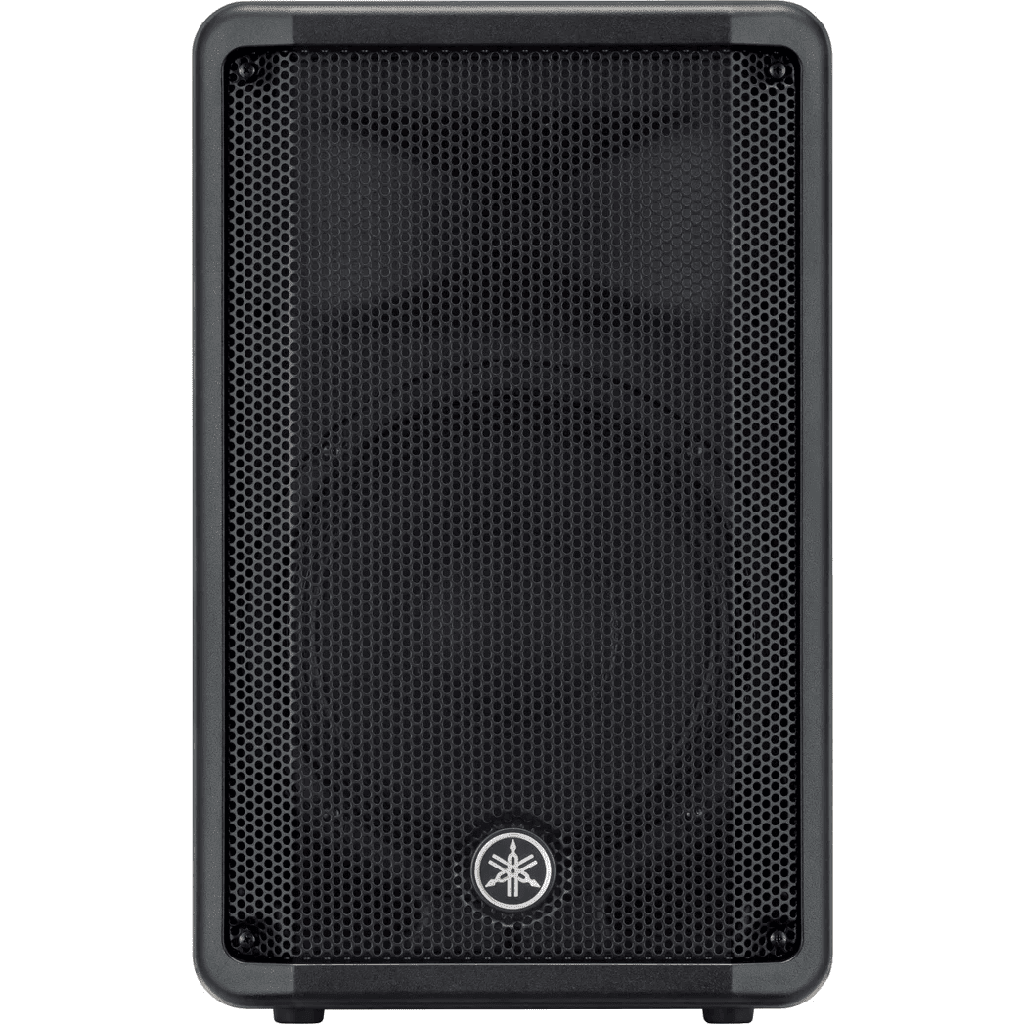

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.
Features
- FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
- D-Contour optimizes the DBR10 for main speaker or floor monitor use
- Onboard mixer lets you select either a direct output or a mixed output
- Comprehensive inputs for mixer, musical instrument, or media players
- Amplifier and power supply design provides powerful output from a compact speaker
- DSP-controlled protection functionality promotes optimum reliability
Specifications
- Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB): 55Hz – 20kHz
- Nominal coverage
- H: 90°
- V: 60°
- Components
- LF: Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite
- HF: Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite
- Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- Maximum output level (1m; on axis): 129dB SPL
- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation: Fan cooling, 4 speeds
- Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption: 60W(1/8 Power Consumption), 18W(Idle)
- Cabinet material: Plastic
- Finish: Black
- Handle: Top x 1
- Flying and mounting hardware: Bottom x 2 (Fit for M8 x 15 mm eyebolts)
- Pole socket: 35mm (Bottom x 1)
- Dimensions
- W: 308mm (12.1″)
- H: 493mm (19.4″)
- D: 289mm (11.4″)
- Net weight: 10.5 kg (23.2 lbs)
- Optional Accessories: BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
