RECORD & STREAM WITH EASE
AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.

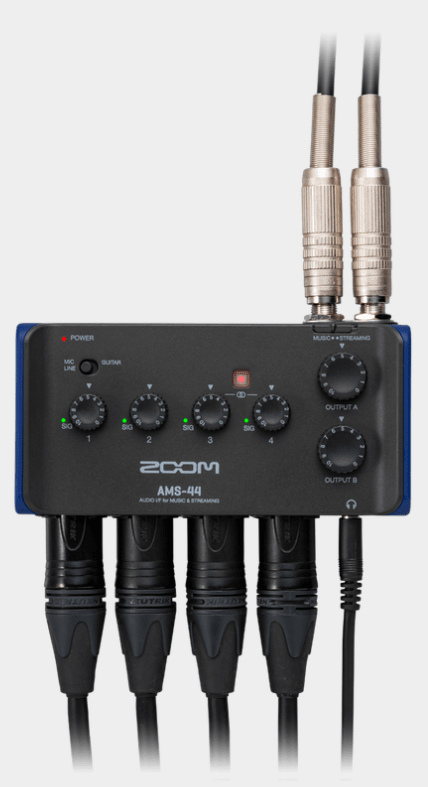

AMS-44 | 4-In, 4-Out
Whether you’re recording or streaming, the AMS-44 keeps your setup simple. It features four XLR/TRS combo inputs along with Zoom’s high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.
QUICK CONTROL
With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.
MUSIC / STREAMING SWITCH
LITTLE SWITCH, BIG STREAMS
Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.
DIRECT MONITOR SWITCH
ONBOARD MONITORING
Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.
LOOPBACK SWITCH
LOOP IT BACK
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
SWITCHES
MIC/LINE – GUITAR
Switch Input 1 from Mic or Line Level to Guitar Level (Hi-Z).
SWITCHES
STEREO LINK
Links two inputs for stereo recording or streaming, and allows you to control both inputs with one gain knob.
SWITCHES
PHANTOM POWER
Provides 48V phantom power for condenser microphones.
AMS-44
Input and Output Channels
NUMBER OF INPUT CHANNELS
Mono (MIC/LINE)
4
NUMBER OF OUTPUT CHANNELS
Stereo (TRS)
1
Stereo (PHONES)
2
Connectors
INPUT 1-4
Type
XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain
−∞ – +58 dB / −∞ – +50 dB (when set to GUITAR)
Input impedance
XLR: 2.7 kΩ
TRS: 18 kΩ / 330 kΩ (when set to GUITAR)
Maximum input level
XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom power
+48 V
OUTPUT A (STANDARD PHONE JACKS)
Type
TRS phone jacks (balanced)
Maximum output level
+10 dBu (at 0 dBFS)
Output impedance
100 Ω
OUTPUT A–B (HEADPHONE JACKS)
Type
3.5mm stereo mini jacks
30 mW + 30 mW (32 Ω load)
Output impedance
10 Ω
USB
USB Type-C (audio interface function)
• Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V
USB Type-C (for power supply)
Frequency Response
44.1 kHz: ±1 dB (20 Hz – 20 kHz)
96 kHz: ±1.5 dB (20 Hz – 40 kHz)
Equivalent input noise
–120 dBu or less (IHF-A) at +58 dB/150Ω input
Audio interface
INPUT AND OUTPUT CHANNELS
Recording: 4 channels
Playback: 4 channels
SAMPLING FREQUENCIES
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH
24-bit
INTERFACE
USB 2.0
CLASS
USB Audio Class 2.0
Power
2 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5 V/1 A
• USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 350 mA
Batteries (2.4 V): 560 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32Ω headphone load
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 8.5 hours
• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption
5 W maximum
Dimensions
129.0 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only)
177 g
Weight (including batteries)
223 g
AMS-Series System Requirements
WINDOWS
OS: Windows® 10 / 11 (64bit)
CPU: Intel® Core i3 or faster, or AMD Ryzen 3 or faster with Zen architecture*
USB: USB 3.0 / 2.0**
* Operation is not guaranteed with CPUs from Intel® Atom, Celeron or Pentium series or CPUs from AMD Athlon.
** Only USB host controllers with Intel/AMD Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
MAC
OS: Mac® OS X 10.14.6 ~ macOS 13
CPU: Intel® Core i3 or faster, or Apple M1
USB: USB 3.0 / 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE / IPAD
OS: iOS/iPadOS 13.7 ~ 16
* Apple Lightning-to-USB Camera Adapter required.
ANDROID
OS: Android OS 9 ~ 11
* USB cables and adapters that match the connectors are necessary.
* Please refer to the compatible android device list.
