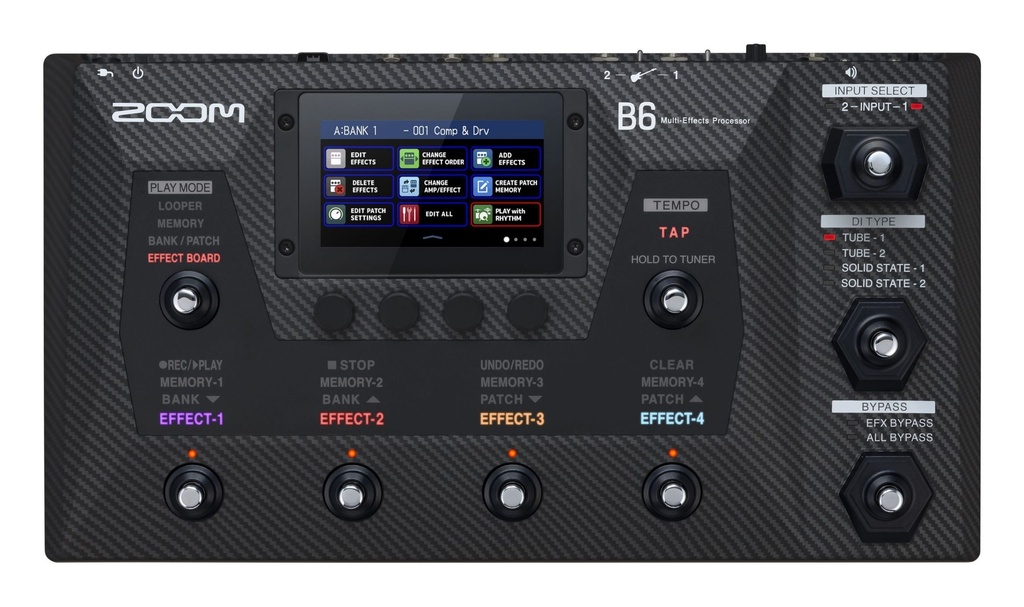

Zoom B6 Multi-Effects Processor for Electric Bass

With four DI models and advanced multi-effects, the Zoom B6 gives you freedom to explore entirely new sounds.

B6 features Zoom’s ultimate FX processor technology with amp modelling, unique DI box modelling and 88.2 Khz sampling frequency. The B6 is an integrated pedalboard with 9 footswitches and a 4.3-inch colour touchscreen with easy-to-use app-based technology, that lets you drag, drop and swipe your way to new sounds. This allows you to create effects chains with up to six effects + amp emulation, and even load your own impulse responses for speaker simulation.

The two inputs with variable impedance lets you connect electric and acoustic basses simultaneously, as they can be seamlessly switched via the integrated A/B switcher for quick instrument changes. Developed in collaboration with renowned bassists, the new DI output offers a choice of two of the most popular tube and two of the most popular transistor DI boxes.

68 internal rhythm patterns, the new looper with up to 2h recording time and the integrated USB audio interface make the B6 the perfect partner for practicing, recording and on stage.

Key Features:
DI models: 2 tube and 2 solid state models
Integrated A/B switcher for seamless instrument switching
Ultimate Zoom FX processor technology with amp modeling
Integrated pedal board with 9 stomp switches
IR load function for speaker cabinet simulation
4.3˝ colour LCD touch-screen interface
Chain up to 6 effects (including amp emulation)
Two variable-impedance inputs for electric and acoustic bass
New Play Mode Footswitch provides instant access to different play modes
Easy-to-see backlit panel with colour-coded stomp effects
Built-in USB audio interface (2-in / 2-out)
Rhythm patterns and looper
Compatible with Zoom Guitar Lab
Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab for B6 app
Accessibility functionality for the visually impaired with Handy Guitar Lab for B6 app
Specifications
Simultaneous Effects 6x
Patches User: 240x
Sampling Frequency 88.2 kHz
AD/DA 24-Bit with 128x Oversampling
Signal Processing 32-Bit
Frequency Characteristics 20 Hz to 40 kHz, ±0.5 dB, 10-Kilohm Load
Controls 4 x FX Footswitches
1 x Tap Tempo Switch
1 x Mode Switch
1 x Bypass/Engage Switch
1 x DI Selector Switch
1 x Input Selector Switch
Display TFT colour LCD (480 x 272 pixels), 4.3″ / 10.9 cm
Noise Floor Amp/Phones: -96 dBu
Output: -100 dBu
Send: -99 dBu
I/O 2 x 1/4″ TS Inputs (Impedance Selectable)
1 x 1/4″ TS Return Input
1 x 1/4″ TRS Control Input
1 x 3.5 mm TRS Auxiliary Input
1 X 1/4″ TRS Send Output
1 x 1/4″ Amp/Line/Phone Output
1 x XLR Output, Balanced
1 x USB Type-C Port
Input Level Inputs 1/2: -20 dBu
Return: -20 dBu
Aux In: -10 dBu
Input Impedance Inputs 1/2: 1/10 Megohm
Return: 1 Megohm
Aux In: 10 Kilohms
Output Level Amp Out/Phones: +11.4 dBu with Output of 10 Kilohms or Higher
Send Output: +11.4 dBu with Output of 10 Kilohms or Higher
Headphone Output Power 24 mW + 24 mW at 32 Ohms
Output Impedance 100 Ohms (Hot Ground, Cold Ground), 200 Ohms (Hot-Cold)
Control Input FP02M Input
Power Zoom AD-16, Supplied
USB USB 2.0 Micro-B
Supported Cable Type: Micro-B
Audio Interface USB 2.0 Full Speed, 44.1 kHz (32-bit) / 88.2 kHz (16-bit), 2 Inputs, 2 Outputs
SD Card Cards that Support SD/SDXC/SDHC Specifications (Class 10 or Higher)
Looper 44.1 kHz / 16-Bit Stereo WAV
Impulse Response 44.1 to 192 kHz, 16/24/32-Bit WAV
Dimensions 22.8 x 41.8 x 6.5 cm
Weight 1.9 kg
