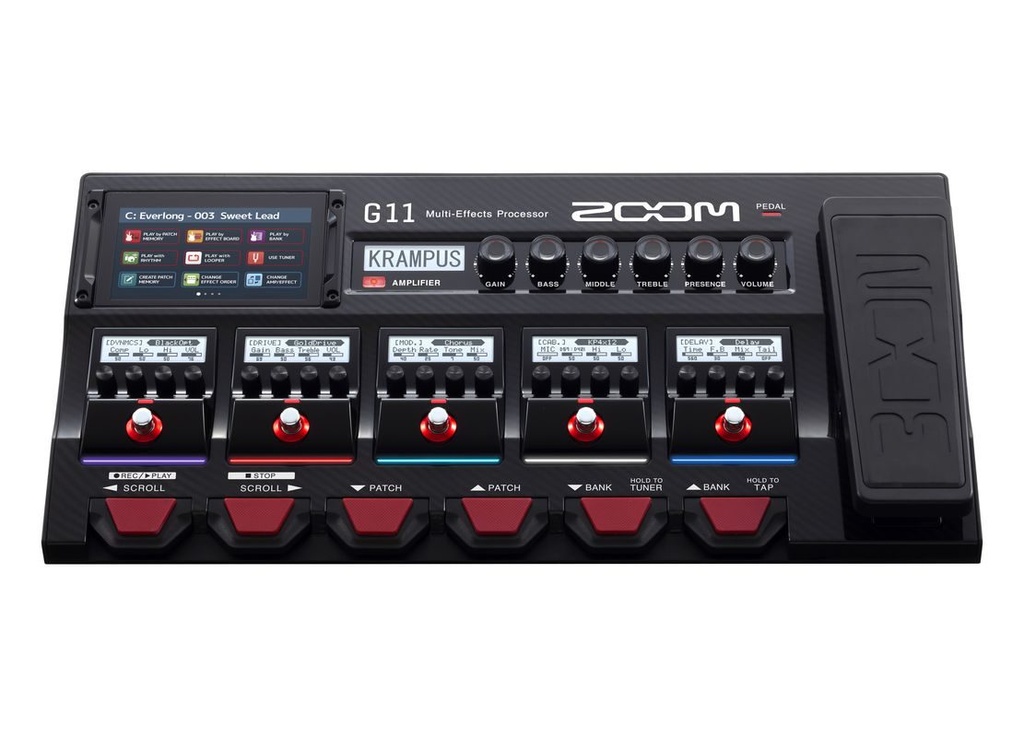

Zoom G11 Multi-Effects Processor

Get yourself a stadium-ready sound in a portable package with the Zoom G11 Multi-Effects Processor, a pedalboard with everything you need to get rocking and rolling. This unit offers a dedicated amp-modelling panel, five stompbox switches, and a foot pedal for expression and volume controls. With a touchscreen interface, securing your guitar tone is easier than ever, simply drag and swipe among all your options for a great tone.

The pedal offers a plethora of built-in effects, any nine of which are usable simultaneously. Run modulation, distortion, compression, and time based effects ahead of a dedicated amp simulation. There are 50 cabinet impulse responses are built into the pedal. But if you like third party IRs from other companies, feel free to load them into one of 50 user slots. There are 240 presets that can be saved and recalled at any time.

The unit itself utilises 32-bit digital processing internally, with 24-bit AD/DA conversion at 44.1 kHz that provides over 128x oversampling for realistic timbres. Controls are easy, thanks to the footswitches and built-in expression pedal. Add more control via the back panel, where you’ll find MIDI I/O, a 1/4″ control input, and a slot for a separately available Bluetooth adapter. Two 1/4″ FX loops are also provided, as are stereo outputs, a headphone output, and an auxiliary input.

You’ll find both USB Type-C and USB Type-A ports, one for using the box as an interface for recording guitars directly to computers and the other for hosting USB thumb drives. Using the optional Bluetooth adapter, you can access even more amp/cab/effect combinations through the Zoom Guitar Lab. A 5-minute looper lets you layer sounds if that’s the kind of performance you’d like to achieve. A power adapter is included with the unit.

Key Features:
Integrated pedalboard with dedicated amp modelling panel, five Stomp switches, and expression/volume controller.
Touchscreen interface on colour LCD with drag and swipe functions for easy and fast navigation.
Chain up to nine effects plus an amplifier emulation.
Original amp modelling combinations.
Original distortion and modulation effects.
50 built-in IR emulations plus 50 available slots for user uploaded IRs.
2 effects loops.
MIDI I/O.
5-minute stereo looper.
68 built-in rhythm patterns.
USB audio interface for direct recording to your DAW.
Remote iOS connection for using Guitar Lab Mobile via Bluetooth Adapter (BTA-1)
Compatible with Zoom Guitar Lab to download additional effects.
Specifications
Simultaneous Effects Amplifier + 9 Effects
User Presets 240
Sampling Frequency 44.1 kHz
AD/DA Conversion 24-Bit with 128 Oversampling
Signal Processing 32-Bit
Frequency Characteristics 20 Hz to 20 kHz (+1 / -2 dB), 10-Kilohm Load
Display 5″ TFT colour LCD (800 × 480)
6 x Dot-Matrix LCDs (128 × 32)
I/O 1 x 1/4″ Instrument Input
1 x 1/4″ Control Input
2 x 1/4″ Return Inputs
1 x 3.5 mm Auxiliary Input
2 x 1/4″ Send Outputs
2 x 1/4″ Outputs
1 x 1/4″ Phones Output
1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output
1 x USB Type-C Port
1 x USB Type-A Port
Input Level Input: -20 dBu
Return: -20 dBu
Auxiliary Input: -10 dBu
Input Impedance Input: 500 Kilohms, Line
Return: 1 Megohm
Auxiliary Input: 10 Kilohms, Line
Maximum Output Levels Left/Right, Instrument: +11.4 dBu (with Output Impedance >10 Kilohms)
Left/Right, Line: 19 dBu (with Output Impedance >10 Kilohms)
Phones, Line: +11.4 dBu (with Output Impedance >10 Kilohms)
Headphones: 24 mW + 24 mW (at 32-Ohm Load)
Send, Line: +11.4 dBu (with Output Impedance >10 Kilohms)
Signal to Noise Ratio 123 dB
Noise Floor Left/Right, Instrument: −99.5 dBu
Left/Right, Line: −92.5 dBu
Send: 99.0 dBu
Control Input For FP02M
USB Device Interface GuitarLab: USB 1.1 Full Speed
Audio Interface: USB 2.0 High Speed
44.1 kHz / 32-Bit
4-In / 4-Out
USB Bus Power Not Supported
USB Host Connector: USB 2.0 Type-A
Standard: USB 2.0 High Speed
Use a USB Thumb Drive
Power AC Adapter: 12 VDC, Centre Plus, 2000 mA (Zoom AD-19)
Dimensions 10.0 x 19.5 x 2.5″ / 25.3 x 49.5 x 6.4 cm
Weight 6.2 lb / 2.8 kg
