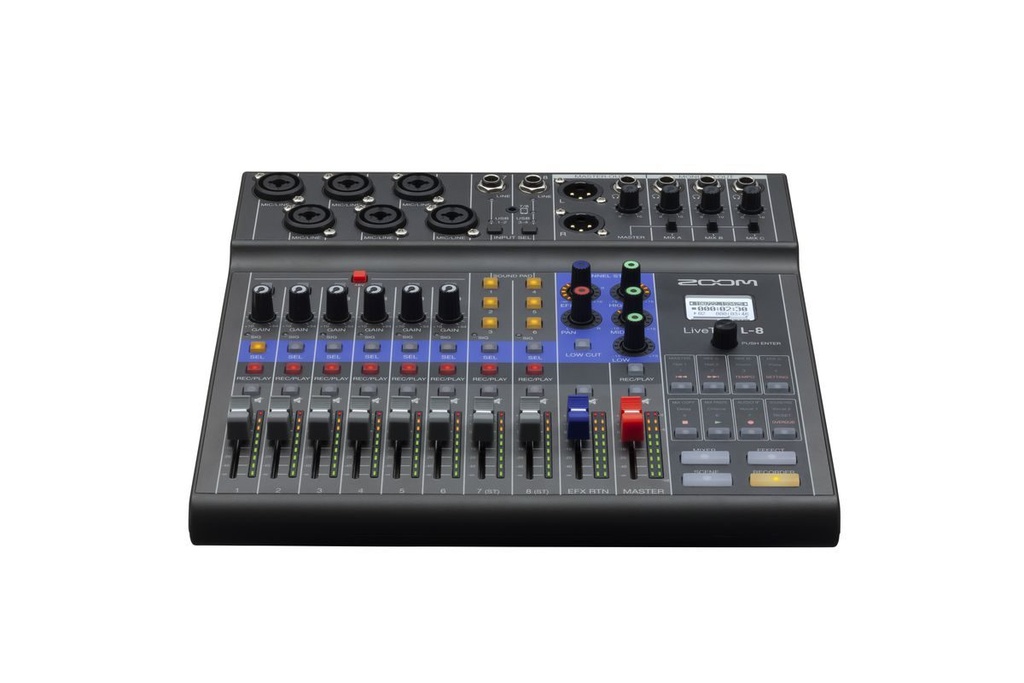

The Board for Creators
Creators are evolving—and so are we. Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package.
Power to the Podcast
Podcast creators are a special breed. They require a unique set of audio features, along with the flexibility of a proper mixing console. The LiveTrak L-8 combines Zoom’s famous audio performance with features made for podcasters.
First-Time Caller, Long-Time Listener
Remote interviews are a snap with the L-8; just connect your phone via the provided TRRS cable. The Mix-Minus function automatically prevents echo and feedback to and from the caller. Or use the USB connection to route audio from Skype, Facetime, Hangouts, Slack and more.
A Track for Everyone
The pros know that when you record everyone on their own separate track it just sounds better and provides more flexibility in the edit. The L-8 records separate tracks directly to your SD card, enabling you to edit them later.
Features
- 8-channel mixer (6 combo, plus 2 TS)
- 12-track simultaneous recording, 10-track playback
- Mix-Minus function preventing audio feedback from dial-in guests
- TRRS connection and included TRRS cable for phone connectivity
- 6 assignable Sound Pads, with 13 preset sounds
- 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
- 3-band EQ and a low-cut function
- 7 scene memories for storing mixes
- 12-in / 4-out USB audio interface
- Class-compliant mode (for iOS compatibility)
- Battery operated with four AA batteries or a USB power supply
- Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously
Specs
INPUTS AND OUTPUTS / NUMBER OF CHANNELS
| Inputs: |
MIC/LINE : 6 |
| |
LINE : 2 |
| Output: |
MASTER OUT : 1 |
| |
MASTER OUT (PHONES) : 1 |
| |
MONITOR OUT (PHONES) : 3 |
INPUTS
| MIC/LINE: |
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
| |
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON) |
| |
Input impedance: XLR: 3 kΩ |
| |
Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON) |
| |
Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS) |
| |
Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS) |
| |
Phantom power: +48 V |
| LINE: |
Type: TS phone jack |
| |
Input impedance: 10 kΩ |
| |
Maximum input level: +3 dBu |
| Smartphone connection jack: |
Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC) |
| |
Input impedance: 10 kΩ |
| |
Maximum input level: +3 dBu |
OUTPUT
| MASTER OUT: |
Type: XLR jacks (balanced) |
| |
Maximum output level: +14.5 dBu |
| |
Output impedance: 100 Ω |
| MASTER OUT (PHONES): |
Type: Standard stereo phone jack |
| |
Maximum output level: 10 mW + 10 mW (60Ω load) |
| |
Output impedance: 10 Ω |
| MONITOR OUT (PHONES): |
Type: Standard stereo phone jack |
| |
Maximum output level: 10 mW + 10 mW (60Ω load) |
| |
Output impedance: 10 Ω |
BUSES
| MASTER: |
1 |
| MONITOR: |
3 |
| SEND EFX: |
1 |
CHANNEL STRIP
| LOW CUT: |
75 Hz, 12 dB/OCT |
| EQ: |
HIGH: 10 kHz, ±15 dB, shelving |
| |
MID: 2.5 kHz, ±15 dB, peaking |
| |
LOW: 100 Hz, ±15 dB, shelving |
| |
|
| Level meter: |
9 segments |
| Send effects: |
8 types |
RECORDER
| Maximum simultaneous recording tracks: |
12 at 44.1/48/96 kHz |
| Maximum simultaneous playback tracks: |
10 |
| Recording format: |
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo |
| Recording media: |
4GB – 32GB SDHC-compliant cards (Class 10 or higher) |
| |
64GB – 1TB SDXC-compliant cards (Class 10 or higher) |
AUDIO INTERFACE
| 44.1/48 kHz: |
Recording: 12 channels |
| |
Playback: 4 channels |
| Bit depth: |
24-bit |
| Interface: |
USB 2.0 |
SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
| Windows: |
OS： Windows® 8.1 / 10 / 11 (32bit/64bit) |
| |
CPU: Intel® Core i3 or faster* |
| |
USB: USB 3.0/USB 2.0** |
| |
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. |
| |
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards. |
| Mac: |
OS： macOS 10.12 ~ 15 |
| |
CPU: Intel® Core i3 or faster |
| |
USB: USB 3.0/USB 2.0* |
| |
* Operation is not guaranteed when used with USB hubs or expansion cards. |
| iPhone/iPad: |
OS： iOS 10 ~ 18, iPadOS 15 ~ 18 |
| |
* Apple Lightning-to-USB Camera Adapter required. |
| |
|
CARD READER
| Class: |
Mass storage USB 2.0 High Speed |
| |
|
| Sampling frequency: |
44.1/48/96 kHz |
| Frequency response: |
20 Hz – 20 kHz: –1 dB at 44.1 kHz |
| |
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o’clock) |
| Equivalent input noise: |
–121 dBu or less (IHF-A) at +54dB/150Ω input |
| Display: |
LCD with backlight (96×64 resolution) |
| Power: |
4 AA batteries (alkaline, lithium, or rechargeable NiMH) |
| |
AC adapter (ZOOM AD-17): DC 5V/1A |
| |
Supports USB bus power |
| Estimated continuous recording time using batteries: |
Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω): |
| |
Alkaline batteries: about 1.5 hours |
| |
NiMH batteries (1900 mAh): about 3 hours |
| |
Lithium batteries: about 5 hours |
| |
• The above values are approximate. |
| |
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. |
| Power consumption: |
5 W |
| External dimensions: |
268 mm (W) × 282 mm (D) × 74 mm (H) |
| Weight (unit only): |
1.56 kg |
