Blackmagic Design ATEM Television Studio Pro 4K

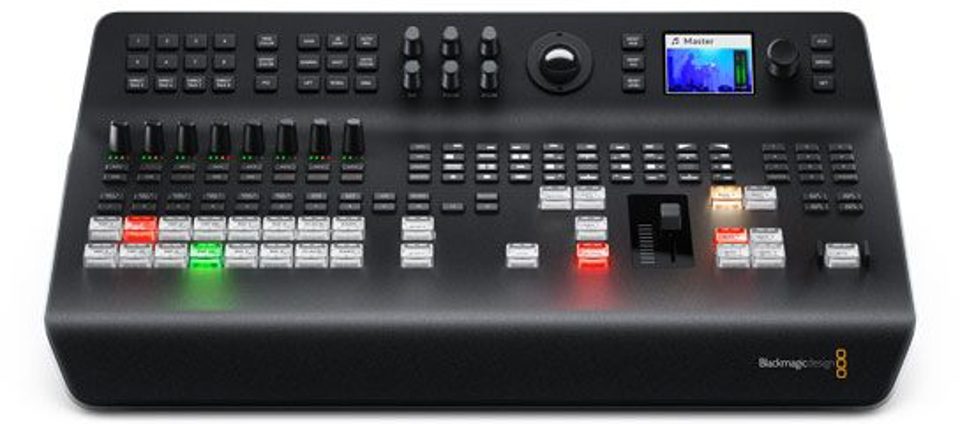

Blackmagic Design ATEM Television Studio Pro 4K features 8 independent 12G-SDI inputs, for working in all popular HD and Ultra HD formats up to 2160p60. Each input features re-sync as well as a full low latency standards converter, which means the input is automatically adapted to the switchers format. You can even have 8 inputs, all running different video formats! The upgraded Fairlight audio mixer features dynamics, 6 band parametric EQ, dual mono channel split and stereo simulator with audio delay on the analog inputs. ATEM Television Studio Pro 4K also features the ATEM Advanced Chroma Key, Ultra HD multi‑view and motion clips in the media pool.
Features
12G-SDI for Ultra HD to 2160p60The ATEM Television Studio Pro 4K features 8 standards converted 12G-SDI inputs so you can connect to both HD and Ultra HD sources. Each input also features a corresponding 12G-SDI output that can be used for camera return feeds with embedded control data, and mix minus is available on each 12G‑SDI output.
Full Input Standards ConversionEach 12G-SDI input features an independent Teranex low latency standards converter allowing inputs to be any combination of HD or Ultra HD television formats. The switcher will convert inputs to the switcher’s standard, and combined with input re-sync, this means you can simply plug in and it just works!
ATEM Advanced Chroma KeyThe all new ATEM Advanced Chroma Key is the next generation keyer that enables incredibly clean green screen keying in real time for seamless multi layer compositing. You get lots of key controls including on screen image sample, edge, flare, foreground color correction, separate spill controls and more!
Fairlight Audio MixerThe ATEM Television Studio Pro 4K model now has a new incredibly powerful Fairlight audio mixer that includes pro audio features such as 6 band parametric EQ, compressor, limiter, expander/noise gate, pan, audio channel split to dual mono, stereo simulator on analog and mic inputs and an audio delay on analog inputs.

Specifications

Connections


Total Video Inputs
8

Total Outputs
12

Total Aux Outputs
1

SDI Rates
1.5G, 3G, 6G,12G

Total Audio Inputs
2 x XLR. 1 x Microphone

Total Audio Outputs
1 x Headphone

SDI Video Inputs
8 x 10-bit HD/UHD switchable. 2 channel embedded audio

HDMI Video Inputs
None

Reference Inputs
Tri-Sync or Black Burst

Video Input Re-Sync
On all 8 inputs

Frame rate and format convertors
On all 8 inputs

SDI Program Outputs
9 x 10-bit HD/UHD switchable

SDI Audio Outputs
2 Ch embedded into SDI output

Multi View Monitoring
1

Multi View Video
1x SDI and 1 x HDMI

Standards


SD Video Standards
None

HD Video Standards
720p50, 720p59.941080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.941080i50, 1080i59.94

Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94

SDI Compliance
292M and 424M, 2081, 2082

Video Sampling
4:2:2 10-bit

Color Precision
4:2:2 10-bit

Color Space
4:2:2 YUV

Input Resolutions for Computers
720p50, 720p59.941080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

Colorspace Conversion
None

Processing Delay
6 Lines

Audio Mixer
12 input x 2 channel mixer.Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Delay line and Stereo Synthesizer on the XLR inputs only.Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.

Product Specifics


Upstream Keyers
1 with Chroma/Linear/Luma key

Downstream Keyers
2

Chroma Keyers
1

Linear/Luma Keyers
3

Talkback Support
Built in, uses aviation headset

Mix Minus Support
Yes, on 8 camera PGM outputs

Transition Keyer (Stinger/DVE)
Stinger and DVE

Total Number of Layers
5

Pattern Generators
2

Color Generators
2

DVE with 3D Borders & Drop Shadow
1

Interface
Minimum monitor resolution of 1366 x 768

Number of Windows
1 x 10

Routable Windows
8 routable and 2 fixed for Program and Preview

Tally
Red for program and green for preview indication.

Tally Output
Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)

Windows Source Labels
Yes

Multi View Monitoring


Multi View Monitoring
1 x 10 Views

Multi View Video Standard
HD/Ultra HD

Media Player


Media Players
2, with non volatile flash memory

Media Pool Still Image Capacity
20 with fill and key

Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF

Channels
Fill and key for each Media Player

Media Pool Clip Capacity
2 with fill and key. Shared pool

Media Pool Clip File Format
TGA Sequence

Media Player Clip Length in 720 HD
1440 frames

Media Player Clip Length in 1080 HD
360 frames

Media Player Clip Length in Ultra HD
90 frames

Media Pool Audio File Format
WAV, MP3 and AIFF

Control


Control Panel
Built in with camera control. Software panel included. Supports optional broadcast panel.

Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included
ATEM Software Control Panel included free for macOS Sierra 10.12 or macOS High Sierra 10.13 or later and Windows 8.1 64-bit or Windows 10 64-bit.

Software


Software Updates
Using USB connection directly connected to macOS or Windows computers. Includes ATEM Switcher Utility.

Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems


Mac
macOS 10.12 SierramacOS High Sierra 10.13 or later

Windows
Windows 8.1Windows 10

Power Requirements


Power Supply
1 x Internal 110 – 240V AC. 4 pin 12V DC

Power Usage
70W

Environmental Specifications


Operating Temperature
5°C to 40°C

Storage Temperature
-20° to 60°C (-4° to 140°F)

Relative Humidity
0% to 90% non-condensing
