dB Technologies CONTROL 24A – A2NET Half-Rack Audio Controller

The dB Technologies CONTROL 24A is the first dBTechnologies controller native to A2NET networks. Designed to integrate seamlessly into the AURORA NET ecosystem, each unit can manage up to 64 speakers equipped with A2NET cards, while also supporting RDNet control and digital audio transmission over a single CAT-5 cable.

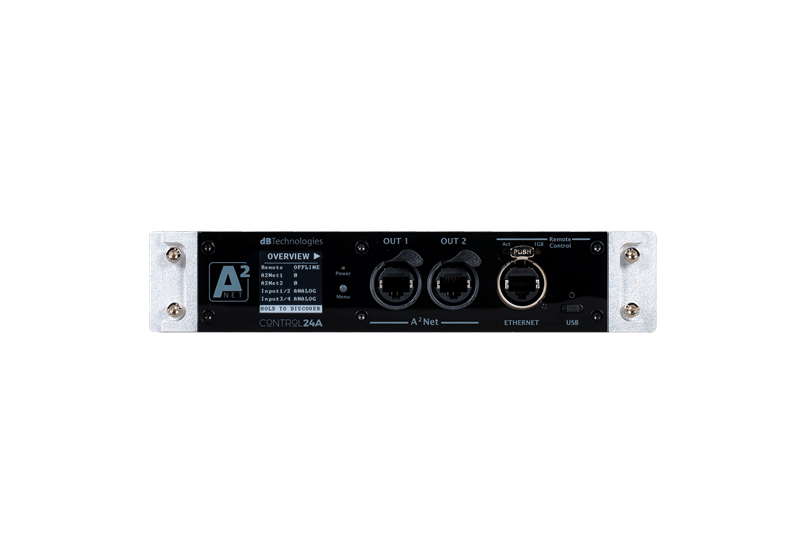

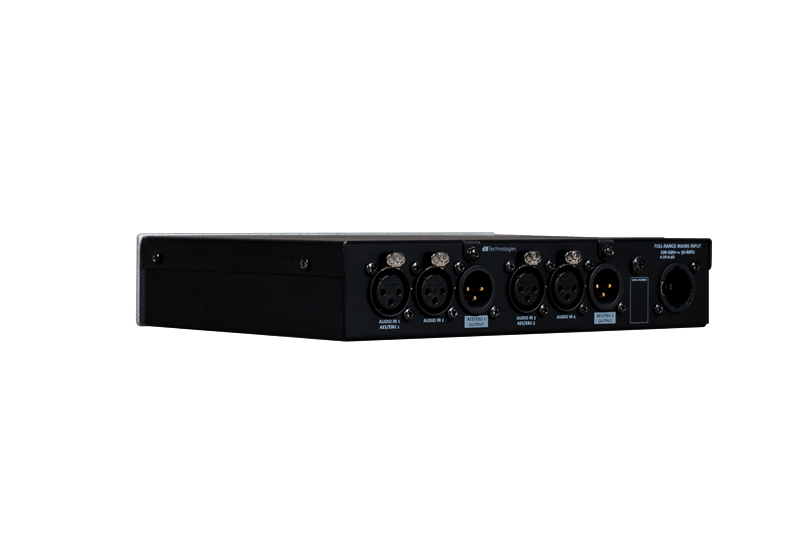

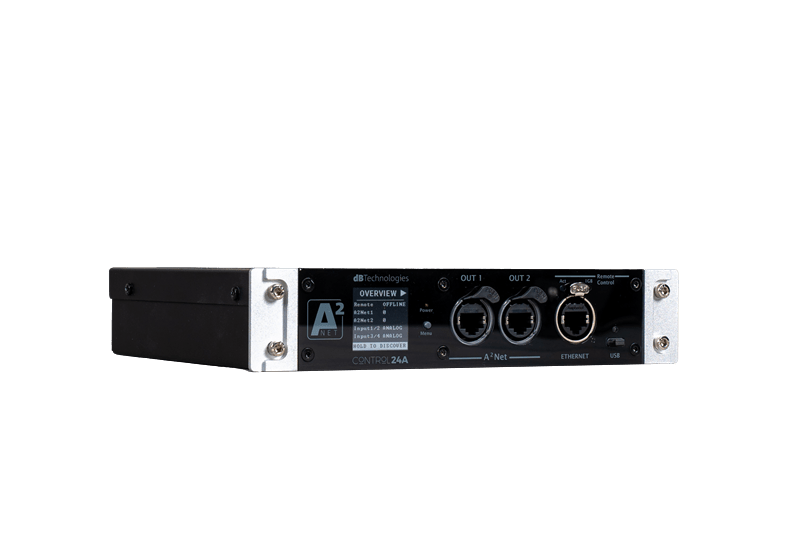

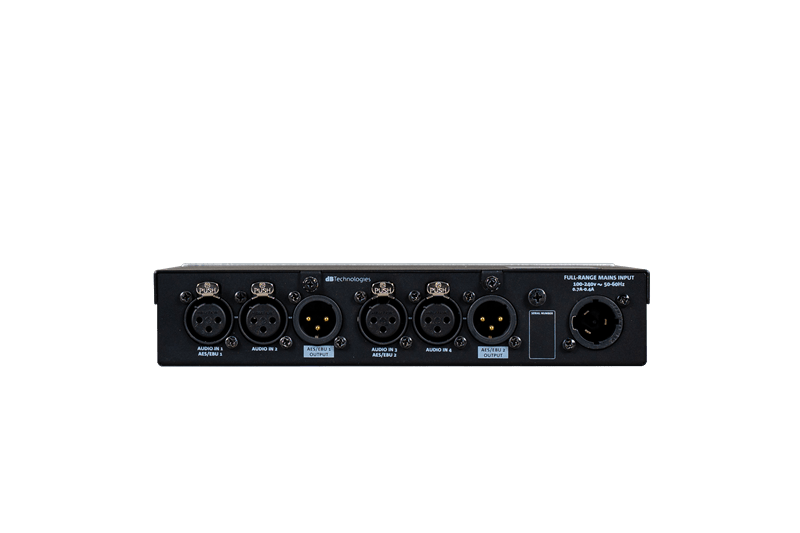

The half-rack form factor (rack-mountable with optional RMK-1) features 4 audio inputs (4 analog or 2 AES/EBU), 4 outputs, 2x A2NET CAT-5 outputs, USB-C and TCP/IP connectivity, and a 1.54″ e-paper display showing IP address, connected speaker count and unit status. Redundant power ensures mission-critical reliability.

Specifications

• Type: A2NET Audio Controller, half-rack
• Audio Inputs: 4 channels (4 analog or 2 AES/EBU)
• Audio Outputs: 4 channels (2 AES/EBU via XLR)
• A2NET Outputs: 2x CAT-5
• Capacity: up to 64 A2NET speakers
• Connection to PC: USB-C and TCP/IP (Etherconn)
• Display: 1.54″ e-paper
• Power: redundant supply
• Networking: A2NET, RDNet, TCP/IP
• Protocol: A2NET (up to 4 channels digital audio per cable)
