DPS Core 6061 Subminiature Lapel Microphone Black
$1,549.00 Inc GST Add to cart

DPS Core 6061 Subminiature Lapel Microphone Black

$1,549.00 Inc GST

DPA d:screet Core 6061 Series Subminiature Microphone with Low Sensitivity

Can Order From Suppler Delivery Times Vary as some shipments are Delayed - Contact For ETA

Brand:DPA

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

6060 Series Subminiature Lavalier Microphones

 Requires Microdot Connector

6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well.



6060 Series Subminiature Lavalier Microphones

  •

    Exceptional audio quality

  •

    Uniform, consistent sound between DPA mics

  •

    Extremely rugged and reliable

  •

    Diminutive size made for flexible and easy concealment

  •

    Large selection of clips, windscreens, grids and other accessories

  •

    Modular adapter system fits most professional wireless systems

A subminiature unlike any other

6060 CORE Subminiature Lavalier Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.





Shrinking CORE into a 3 mm

CORE by DPA is a powerful new technology at the heart of our miniature microphones. We’ve minimized distortion. From a whisper to a scream, you will experience increased clarity and openness.

Now we’ve taken the amazing CORE technology and shrunk it down to fit into our (0.12 in) subminiature mics. This means that, despite their small size, the performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.



Advanced new mic design

This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of our 5 mm (0.20 in) versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire subminiature lavalier mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

The cable is often the weak spot on these types of mics, but we have opted to use the same size cable (Ø 1.6 mm (.06 in)) and the same rugged cable relief as on our 5 mm (0.20 in) mics. The cables are extremely durable, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls. A strain relief is integrated in the mic housing to strengthen the assembly.

The cable and capsule design ensure immunity to noisy wireless devices. These mics are typically connected to a wireless belt pack and we offer a comprehensive mix of adapters to suit the many wireless transmitters available. When used with an adapter, the connector is our MicroDot but we also offer hardwired terminations to suit the most popular systems from manufactures such as Shure and Sennheiser. All of our connectors are equipped with a rugged strain relief.

It’s the only 3 mm (0.12 in) subminiature lavalier microphone that gives you the DPA sonic quality that you know and love.

Learn more about CORE by DPA technology.



IP58 certified

The CORE Subminiatures are IP58 certified. This durability is achieved through a number of defense mechanisms:

  •

    Water-repellant nano-coating of the cover and housing

  •

    Hermetic sealing of the sensitive amplifier at the core of the mic

  •

    Dual gold plating of the diaphragm

Read more about the durability of all our CORE by DPA technology microphones.



Academy-honored subminiatures

In 2021, the Academy of Motion Picture Arts and Sciences’ Board of Governors bestowed a Technical Achievement Award to DPA miniature microphones. The award is directed specifically to Jens-Jørn Stokholm and Ole Moesmann for the innovative development of high-performance miniature and subminiature DPA lavalier microphones.

8-position lavalier clip

When used as a lavalier, a special rotatable clip is available. The 360° clip allows the lav to be mounted in eight positions, chosen in 45° incremental steps. This makes it very easy to change from women’s to men’s shirts (left to right buttoned) or even t-shirts and the like where the neckline is used.



Specifications

6060 Series Subminiature Lavalier Microphones

  • 6060 Subminiature Omni Lavalier Mic for Normal SPL
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz – 20 kHz
Effective frequency range ±2 dB40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
Sensitivity, nominal, ±2.4 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Distortion, THD < 1%125 dB SPL RMS, 128 dB SPL peak
Dynamic rangeTyp. 102 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedanceFrom MicroDot: 30 – 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)For wireless systems Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
ConnectorMicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter3 mm (0.12 in)
Cable length1.8 m (5.9 ft)
PolarityPositively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%

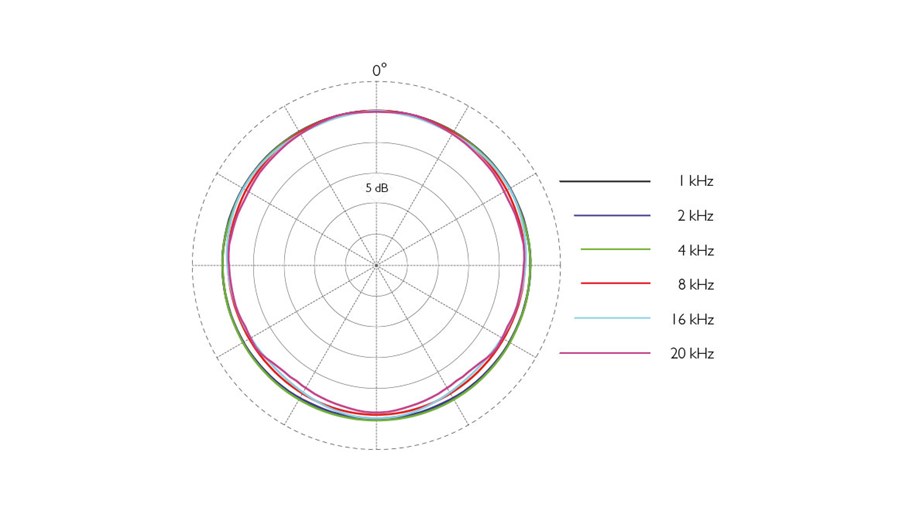

Polar pattern
  • Typical directional characteristics of a 60616060-61-66-subminiature-microphone-polar-pattern-web.jpg

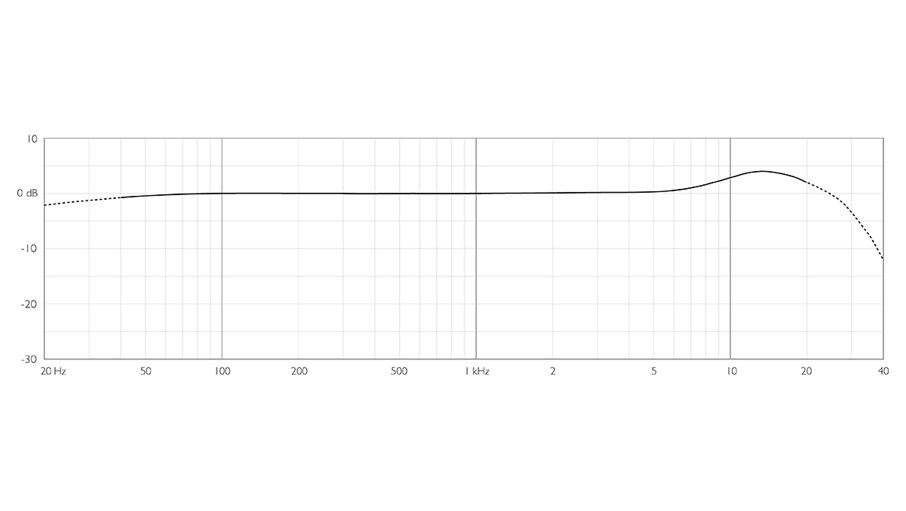

Frequency response
  • Typical response of a 60616061-OC-dscreet-6061-Omni-Mic-frequency-response.jpg
