Permanent installations require solutions which offer a visually discrete design that blends into the background while still being flexible and versatile in their functions. You need to be able to connect different audio sources and manage them, to mute non-priority signals during announcements or emergency calls.

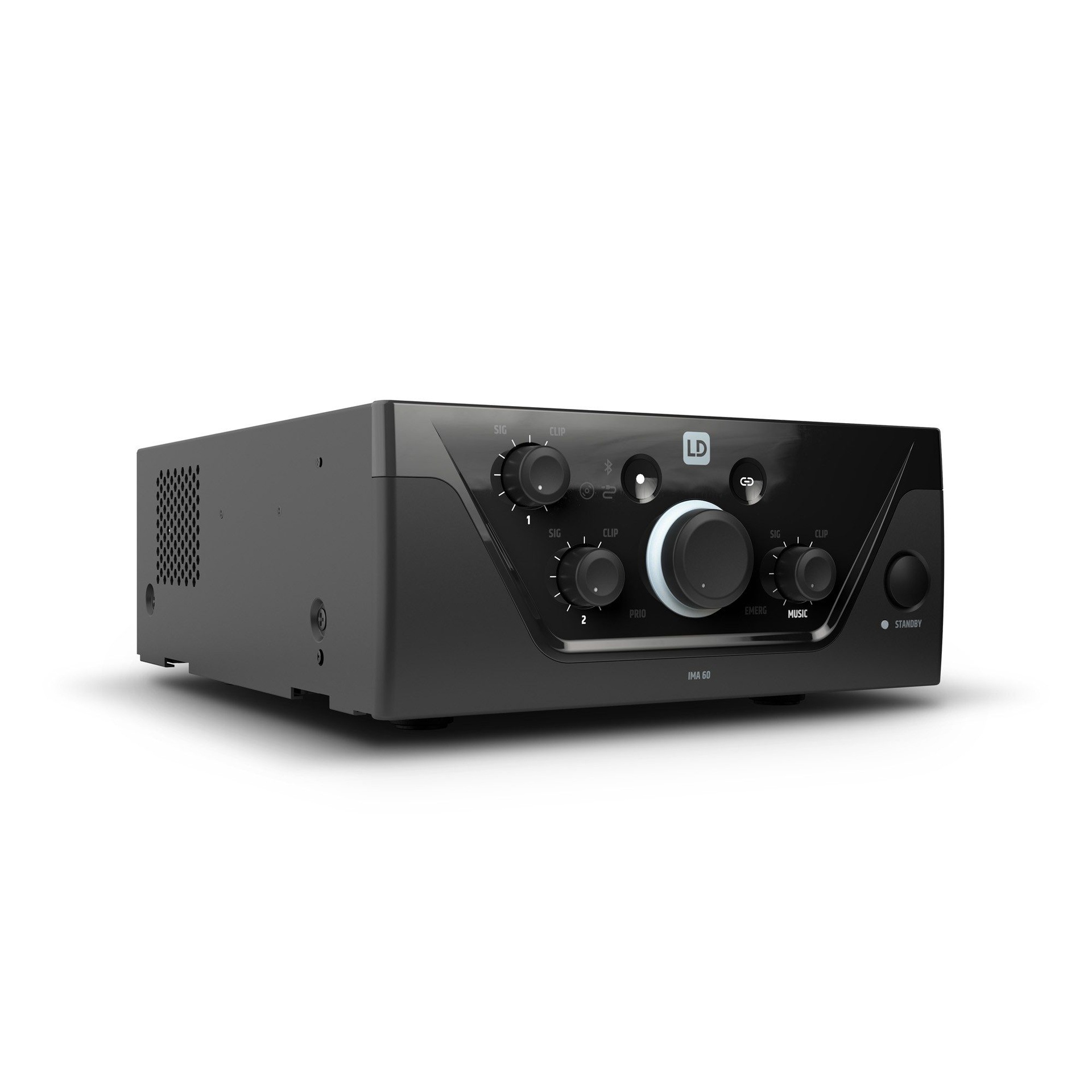

With IMA 60, LD Systems presents a new model of the IMA® mixing amplifier-series, which leaves nothing to be desired in terms of design and flexibility.
Seamless integration with IMA 60 is a sure thing in both industrial and commercial applications thanks to the compact 9.5-inch housing design, an array of connection possibilities, including Bluetooth for wireless connection of Audio and a multistage priority circuit. IMA 60 is equipped with four priority levels to manage all connected audio signals during emergency or priority announcements. An automatic standby mode can also be activated to reduce power consumption during absence of audio signal.
The mixing amplifier features two priority contact closures: one for emergency input to mute both Mic/Line and music sources, and one for Mic/Line Channels to mute music sources only.
The outputs provide 65 W of power at 4 Ohm, a two-band equalizer for bass and trebles as well as 70 V/100 V tap settings. The Hi-Z and Lo-Z selector switch lets you separate the output signal completely from the output transformer to ensure an optimal frequency response for low impedance applications. The built-in aux output can be used to add external power amplifiers, active subwoofers or on-hold music systems to the IMA 60. You can also choose to send the entire mix or only the selected music signal source to the aux output using the music-mix selector switch.
Specifications
General
Product type
Installation mixer preamplifier
Emergency input
1 balanced line input
Mic/ line inputs
2
Mic-/ Line Input Connectors
2 unbalanced stereo line inputs, Bluetooth 4.0
Music sources
2 unbalanced stereo line inputs, Bluetooth 4.0
Line outputs
1
Reinforced Main Outputs
1 with output mode selector (Low-Z/High-Z)
Cooling
Convection
Priority levels
4
Emergency Input
Nominal input sensitivity
-15 dBu (Sine 1 kHz, gain max)
Nominal input clipping
20 dBu (Sine 1kHz)
Priority Contact closure
+5VDC normally open for dry contact
Connector
5-pin Terminal Block, pitch 5.08mm
Mic/Line inputs 1-2
Nominal input sensitivity Mic
Mic: -40 dBu (sine 1 kHz, gain max)
Nominal input sensitivity line
Line: -17 dBu (sine 1 kHz, gain max)
Nominal input clipping Mic
Mic: -5 dBu (Sine 1kHz)
Nominal input clipping line
Line +19dBu (Sine 1kHz)
Phantom power
+ 24V, 10mA switchable
Connector Mic/Line1
5-pin Terminal Block, pitch 5.08mm, XLR/6.3 mm jack
Connector Mic/Line 2
1 dual RCA Mono Summed, 3-pin Terminal Block, pitch 5.08mm, Pitch 5.08mm
Music inputs – CD/AUX
Nominal input sensitivity CD/AUX
– 6.22 dBV (Sine 1 kHz, Gain max)
Connector CD/AUX
2 x dual RCA Mono Summed
Amplifier Output
Amplifier Outputs
High-Z: 70V or 100V outputs, Low-Z: 4 ohm minimum load
Preamplifier input
5-pin Terminal Block, pitch 5.08mm
RMS Power ( W )
65 W (Continuous sine wave 1kHz, 4 ohm load)
Power ( Peak ) (W)
70 W (100 msec sine 1kHz Burst @ 4 ohm load)
Frequency range
20 Hz – 20 kHz (LO-Z, -3 dB), 60 Hz – 20 kHz (HI-Z, -3 dB)
Tone controlBass
+/-10 dB (100 Hz)
Tone control Treble
+/-10 dB (10 kHz)
Protection circuits
Audio Limiter, over-current, short circuit, thermal overload
Aux Output
Connector AUX-output
3-pin Terminal Block, pitch 5.08 mm
Maximum gain
22 dB
Power Supply
Type
Switching power supply
Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz
Power consumption (max.)
Line: -17 dBu (sine 1 kHz, gain max)
Idle power consumption
7.5 W (no signal input)
Power Consumption @ Standby
<1 W
Operating temperature ( non-condensing )
0°C – 40°C; < 85% humidity
General data
Time to Auto-standby
20 Min.
Dimensions (W x H x D) ( height with rubber feet )
210 (W)x 95 (H) x 266.76 (D)mm
Optional accessories
Rack mounting hardware
Weight
2,39 kg
