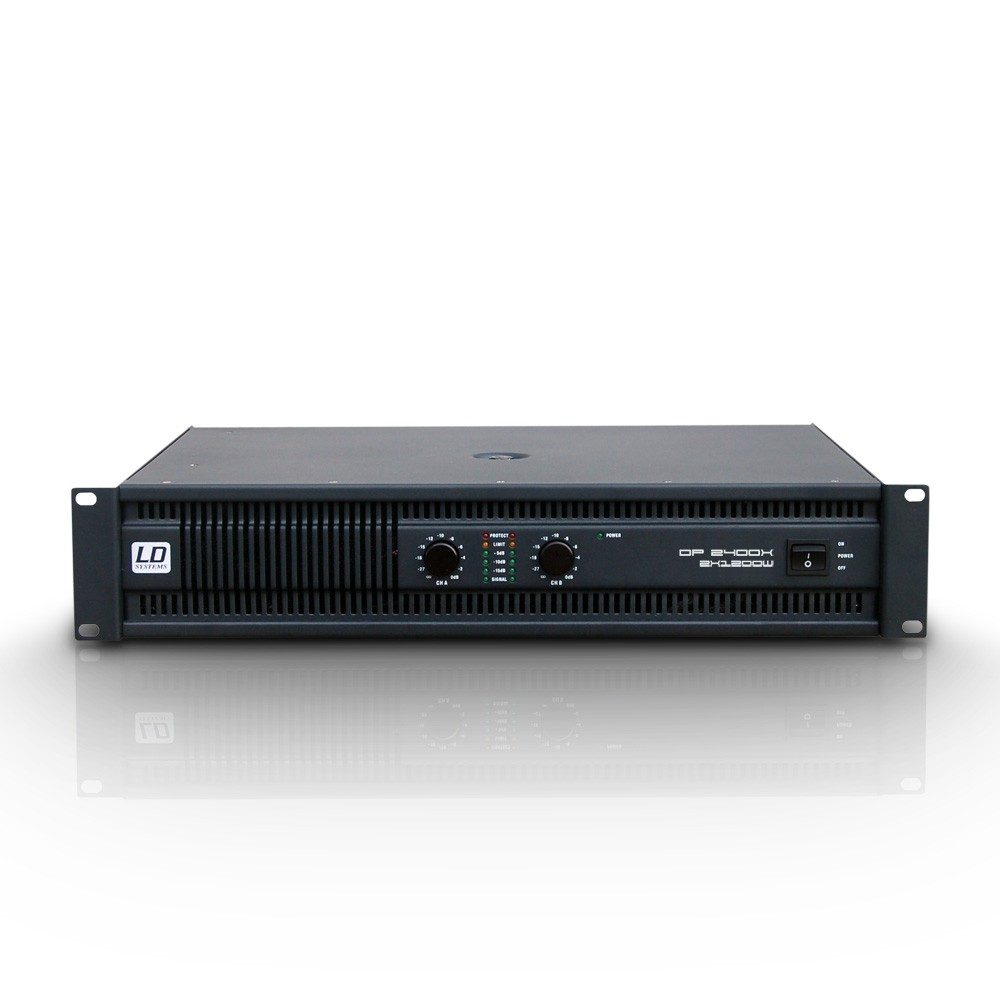

The DP2400X is the newest member of the DEEP2 family of power amplifiers. In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.
Product typePower AmplifiersTypePA Power AmplifiersRated ouput power (1kHz @ 2 Ohms)2 x 1200 WRated ouput power (1kHz @ 4 Ohms)2 x 950 WRated ouput power (1kHz @ 8 Ohms)2 x 600 WRated ouput power (1kHz @ 4 Ohms, bridged)2200 WRated ouput power (1kHz @ 8 Ohms, bridged)1800 WOutput circuitryClass HFrequency response20 – 20000 HzTotal Harmonic Distortion (THD)< 0.1 %Signal-to-noise ratio106 dBDamping factor> 450Crosstalk>76 dBGain39 dBInput sensitivity0.775 VProtection circuitsclip limiter , DC protection , short circuit , thermal overloadControls2 x highpass/lowpass (switchable) , 2 x volume , bridge/stereo mode selector , ground lift , mains switch (on/off)Indicatorslevel , Limit , Power , Protect (protection circuit engaged) , SignalLoudspeaker outputs2Speaker output connectionsSpeakon compatible , Terminal postsCoolinghighly efficient, automaticOperating voltagetransformerOperating voltage230 V AC / 50-60 HzWeight17,6 kgFeaturesVolex mains socket
Product type | Power Amplifiers |
Type | PA Power Amplifiers |
Rated ouput power (1kHz @ 2 Ohms) | 2 x 1200 W |
Rated ouput power (1kHz @ 4 Ohms) | 2 x 950 W |
Rated ouput power (1kHz @ 8 Ohms) | 2 x 600 W |
Rated ouput power (1 kHz @ 4 Ohms, bridged) | 2200 W |
Rated ouput power (1kHz @ 8 Ohms, bridged) | 1800 W |
Output circuitry | Class H |
Frequency response | 20 – 20000 Hz |
Total Harmonic Distortion (THD) | < 0.1 % |
Signal-to-noise ratio | 106 dB |
Damping factor (20Hz-500Hz @8ohm) | > 450 |
Crosstalk | >76 dB |
Gain | 39 dB |
Input sensitivity | 0.775 V |
Protection circuits | clip limiter, DC protection, short circuit, thermal overload |
Controls | 2 x highpass/lowpass (switchable), 2 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off) |
Indicators | level, Limit, Power, Protect (protection circuit engaged), Signal |
Loudspeaker outputs | 2 |
Speaker output connections | Speakon compatible, Terminal posts |
Cooling | highly efficient, automatic |
Operating voltage | transformer |
Operating voltage | 230 V AC / 50-60 Hz |
Weight | 17,6 kg |
Features | Volex mains socket |
