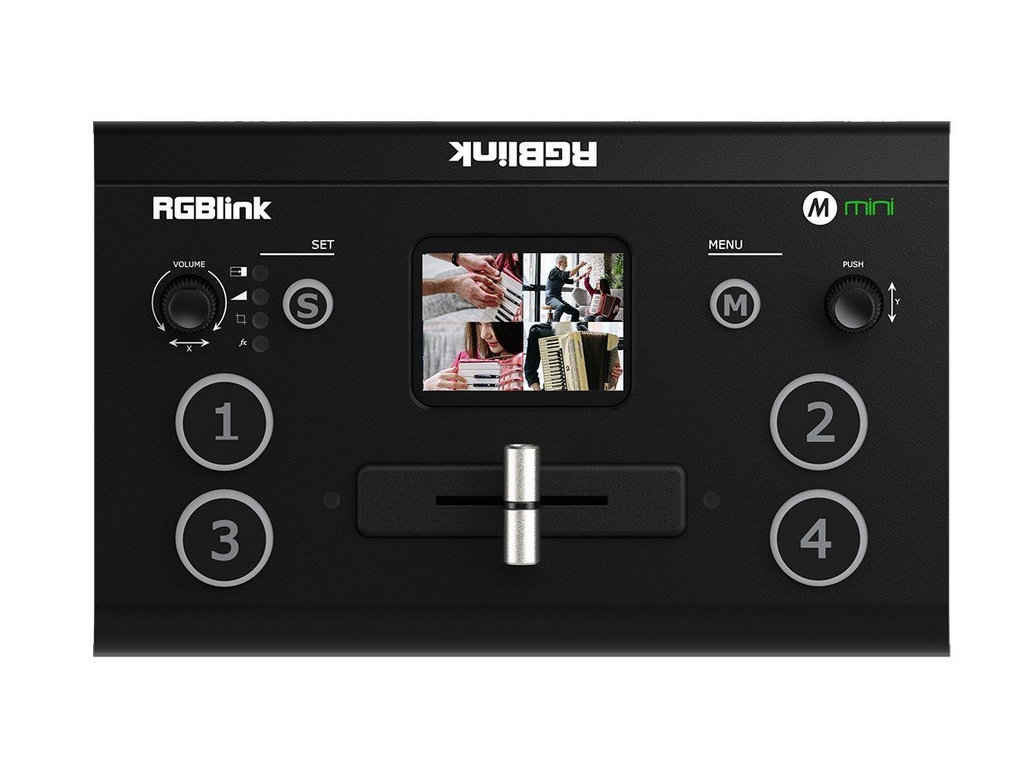

With all the features of the preceding model including the unique built in LCD preview display, the mini streaming switcher features four HDMI high-definition inputs, a configurable HDMI output and USB3.0 streaming output to connect with virtually any laptop or streaming platform.
PIP picture in picture receives a boost in this new release, with dual fully scalable video windows in any position possible.
Make use of audio from multiple sources with mix including Line and TRRS connectors as well as supporting headphone/mic combinations.
mini is powered via standard USB-C port for even greater compatibility and mobile live flexibility.
With industry leading hardware performance and reliability, along with superior heat management and dissipation, mini is the must have mini streaming switcher.
mini is light and robust at only 480gm thanks to an all new impact resistant, precision pressure cast ABS housing.
Key Features
4 HDMI inputs, 1 HDMI output
6 images multi-view, switch between preview and program
2.1 in TFT full color screen
Support MIC and LINE audio input, multi-channel mix audio
Image scaling & cropping
Support PIP,PBP
Support T-Bar switch
6 transition effects
LOGO overlay
Support PC and APP control
Optimized heat management and dissipation
Integrated design, easy to carry
Interface
Input
HDMI 1.3
4×HDMI-A
Output
HDMI 1.3
1×HDMI-A
USB 3.0
1×USB-A
Audio
In
1×3.5mm audio jack
Out
1×3.5mm audio jack
Communication
LAN
1×RJ45
Power
Type-C
1×USB-C
Performance
Input Resolution
HDMI
SMPTE
720p@50/60|1080i@50|1080p@23.98/24.97/50/59.94/60
VESA
1024×768@60|1280×720@60|1280×768@60|1280×1024@60|1360×768@60|
1366×768@60|1440×900@60|1600×1200@60|1680×1050@60|1920×1080@60
Output Resolution
HDMI
SMPTE
720p@50/60|1080p24/25/30/50/60
VESA
1024×768@60|1280×720@50/60|1280×768@60|1280×1024@60|1360×768@60|1920×1080@24/25/30/50/60
Support Standards
HDMI
1.3
H.265
ITU-T H.265/ISO/IEC 23008-2
USB
3.0
Ethernet
10/100/1000BaseT
Color Space
YPbPr
Grayscale Processing
10bit
Video Sampling
YUV 4:2:2
Latency
<4 frames
Audio in Delay
Up to 8 frames
Power
Input Voltage
PD 12V/1.5A
Max Power
18W
Working
Environment
Temperature
0℃~60℃
Humidity
10%~85% RH
Physical
Weight
Net
0.5kg
Package
1.3kg
Dimension
Product
180mmx118mmx58mm
Package
255mmx145mmx85mm
Brand
RGB Link
