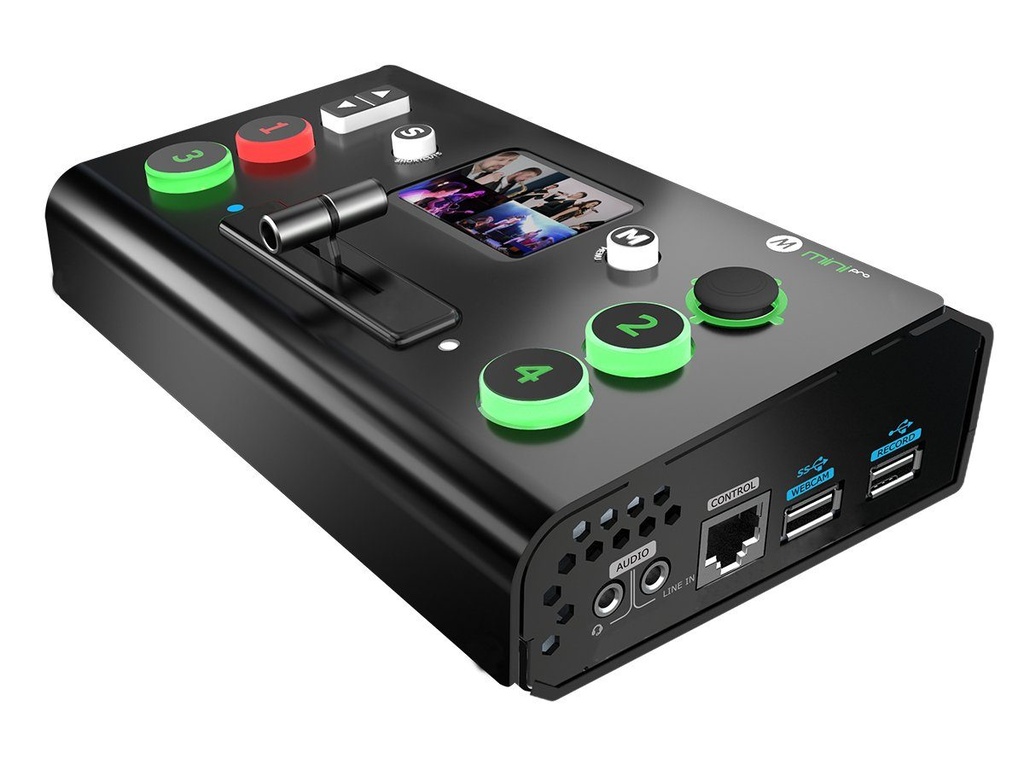

Mini-Pro streaming switcher RGB Link

The dual channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.
Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on board with variable delay controls to bring audio into sync if needed.In addition to HDMI and USB 3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.
The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for laptops and mobile devices too.
mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.


mini switcher convenient to carry

Built-in LCD for video previews

Joystick Camera Control

T-Bar switch and 14 transition effects

4K HDMI inputs

Support live streaming via USB 3.0

Support recording via USB 2.0

Embedded & Insert Audio with Sync

Mix audio from multiple inputs

Configurable PIP video overlay
Chroma Key

Configurable PIP video overlay

Support for third party apps including OBS Studio
Control remotely from XPOSE mini software for computers, mobiles and tablets

Connectors
Input
HDMI 4K
4×HDMI-A






Output
HDMI 2K
1×HDMI-A







Streaming
1×USB TypeA







Recording
1×USB TypeA






Audio
In
2×3.5mm Stereo Jack







Out
1×3.5mm Stereo Jack







Communication
LAN
1×RJ45







Power

1×USB-C






Performance
Input Resolutions
HDMI








SMPTE
720p@50/60 |1080i@50 | 1080p@24/30/50/60  |2160p@60


VESA
1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60  | 1280×1024@60 |



1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 |



1920×1080@60 | 1920×1200@60 | 3840×2160@60 | 4096×2160@60


Output Resolutions
HDMI









SMPTE
720p@50/60 | 1080p@24/25/30/50/60



VESA
1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 |




1920×1080@24/25/30/50/60



USB










1024×768@60 | 1280×720@50/60 | 1280×768@60 | 1280×1024@60 | 1360×768@60 |




1920×1080@24/25/30/50/60


Supported Standards
HDMI
2.0







USB
3.0







H.265
ITU-T H.265/ ISO/IEC 23008-2






Supported Protocol
PTZ
VISCA







Video Formats
HDMI 2.0 | HDCP 2.2







Streaming Formats
ITU-T H.265 | ISO/IEC 23008-2







Disk Formats
FAT32(≤32 GB) | exFAT(64GB~2T)







Recording Formats
MP4 | WAV







Color Space
RGB








Video Sampling
4:4:4 YUV








Latency
<4 frames








Line In Delay
up to 8 frames






Power
Input Voltage
DC 12V/1.5A (via plug pack supplied)






Max Power
20W







Compatibility
USB Power Delivery (PD) 3.0






Supported Cables
Certified USB PD Aware







Environment
Temperature
0℃~60℃






Humidity
10%~85%






Physical
Weight
Net
0.42kg






Package
1.20kg






Dimension
Net
180mm×118.3mm×58.4mm





Package
255mm×145mm×85mm
